Thornado Stationary Petrol Engines | 7HP Recoil StartPrice Guide:$229

Name: Thornado Stationary Petrol Engines | 7HP Recoil Start
Brand: Thornado
Price: 229 AUD
Availability: InStock

Supplier: Thornado

Thornado Stationary Petrol Engines | 7HP Recoil Start

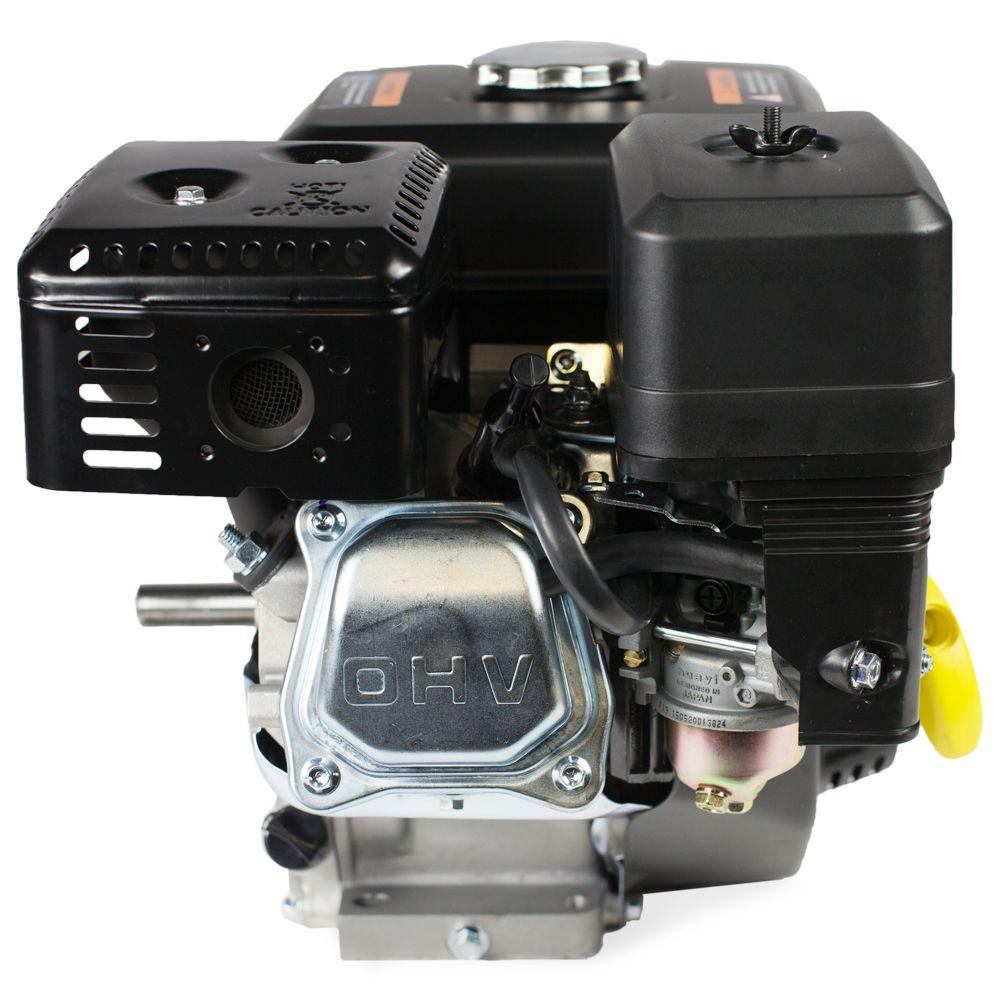

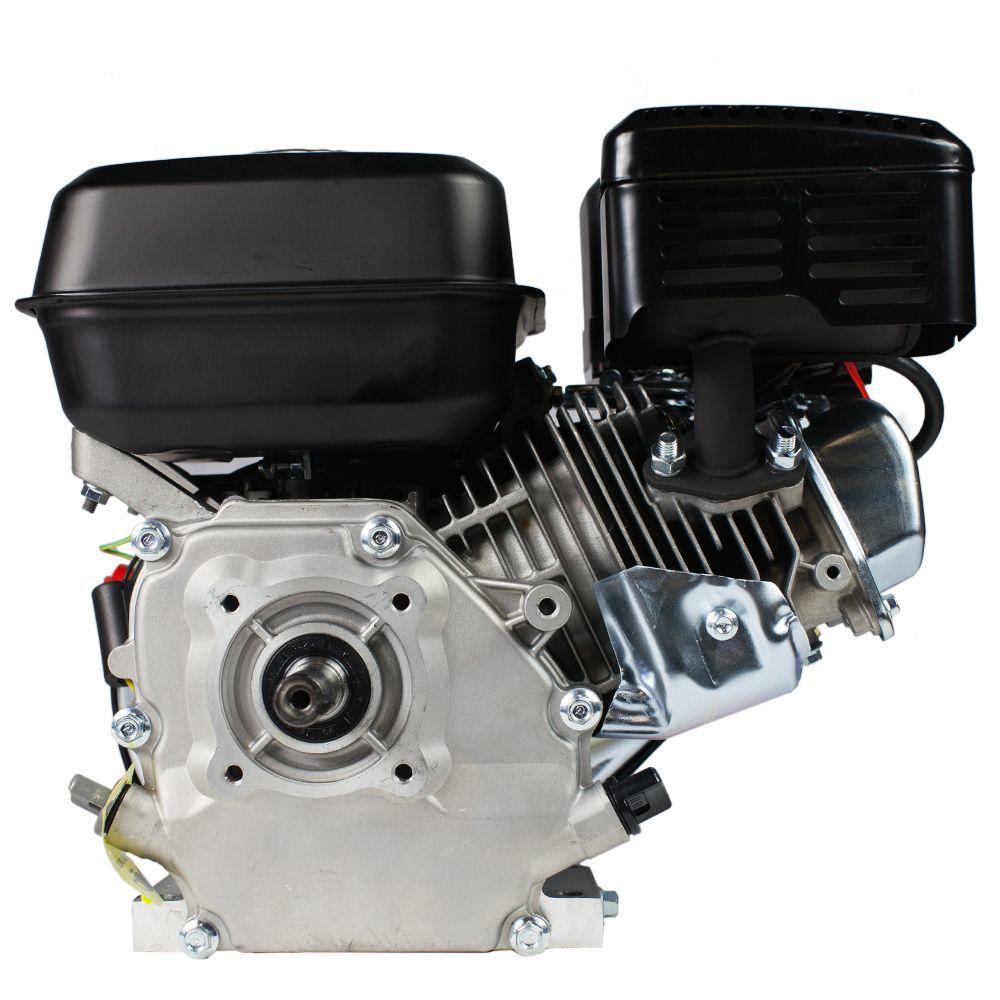

The Thornado 7HP stationary engine is a 4-stroke, single cylinder OHV forced air-cooled petrol engine with a recoil starter that makes it easy to get the equipment running and on task.

In Stock

The horizontal shaft is ball-bearing mounted which make this engine an ideal replacement for most standard engine configurations. This engine features a durable ductile iron crank shaft and?cast iron cylinder making it the perfect engine for variety of applications including water pumps, Go-karts, wood chippers, Pressure Washers, Bench saws & other Agricultural uses. In addition, with a 3.6L fuel tank, this engine is ready for up to 2.6 hours at 3/4 load.

Key Features

Powered by Thornado 7HP, 4 Stroke OHV Engine
19.05mm Horizontal Key Shaft (Q Type)
Camshaft and crankshaft are made of steel.
Durable cast iron cylinder withstands wear
High quality carburettor for easy starting and operation
Smooth running with minimal vibration
Low oil sensor shuts down engine when oil reaches a level that is too low for safe operation
Fuel shut off valve for safe transport
High power to weight ratio
12 Months Australia Warranty

*T&C’s Apply, see Warranty Policy for full details.

Suitable Applications

Water pump
Cement mixers
Air compressors
Mowers
Log splitter
Go-Kart
Generator
Pressure washer
Chippers / shredders
Agricultural uses

SPECIFICATIONS
Model No	TH-070QR
?Type	Single cylinder 4 stroke, air cooled
Displacement	212cc
Bore x Stroke	40 x 55 mm
Max Power	7 HP / 3600 rpm
Max Power	4.4 kW / 3600 rpm
Max Torque	12N.m/2500rpm

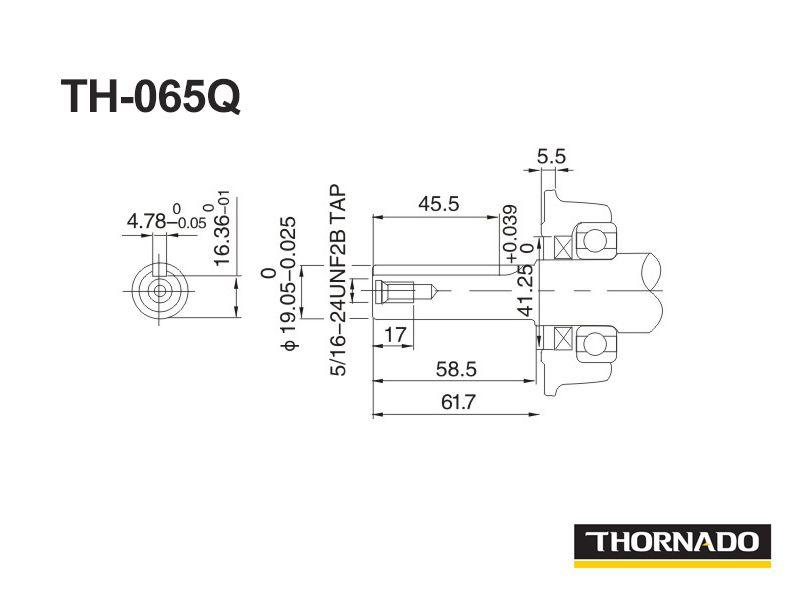

Shaft Type	Horizontal Key Shaft (Q Type)
Shaft Diameter	19.05 mm
Shaft Length	58.5 mm
Shaft Rotation	Anti clockwise from output
Compression Ratio	9.0:1
Fuel Type	Petrol
Oil Type	SAE10w-30 / SAE30
Fuel Tank Capacity	3.6L
Oil Capacity	0.55L
Ignition System	Transistorised magneto ignition
Starting System	Recoil start
Carburettor	Flat suction valve carburettor
brication system	Forced splash
Governor system	Centrifugal mechanical
Spark Plug Compatible	NGK – BP-6ES; Torch – F6TC
Valve Clearance – Intake	0.15mm
Valve Clearance – Exhaust	0.20mm
Fuel consumption	<= 395 g/kW.h

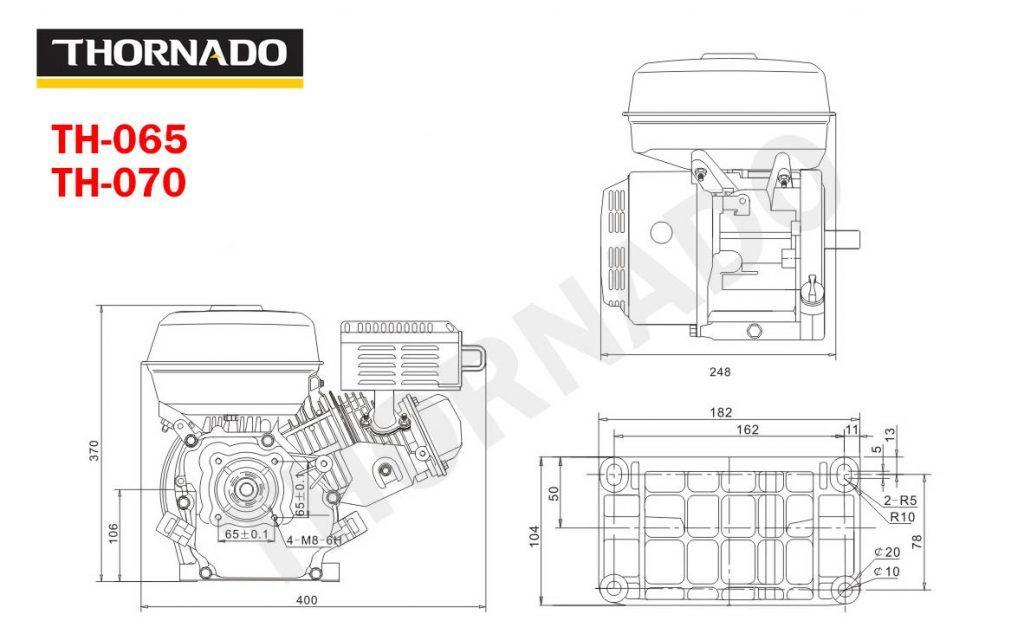

Mounting Pattern	62mm L x 78mm W (center to center)
Product Length	390 mm
Product Width	320 mm
Product Height	345 mm
Product Weight	16 Kg
Certification	EPA III
