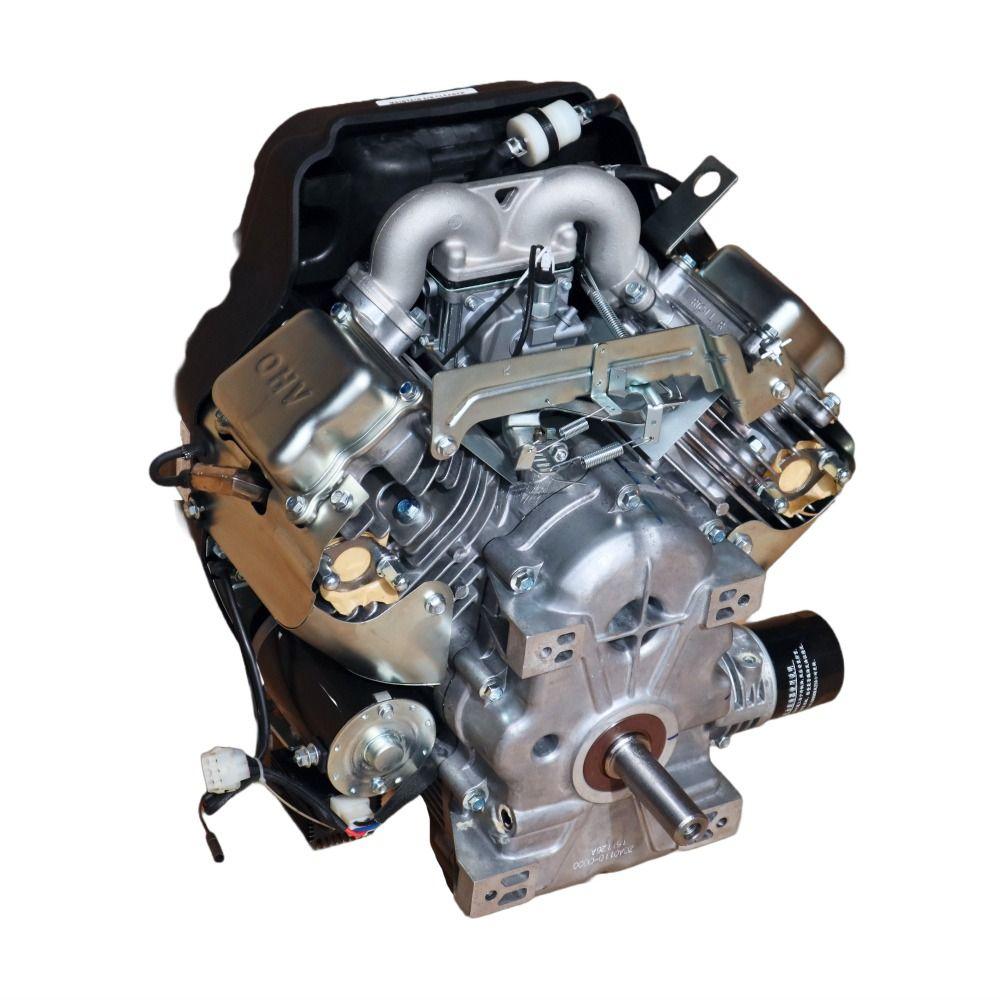

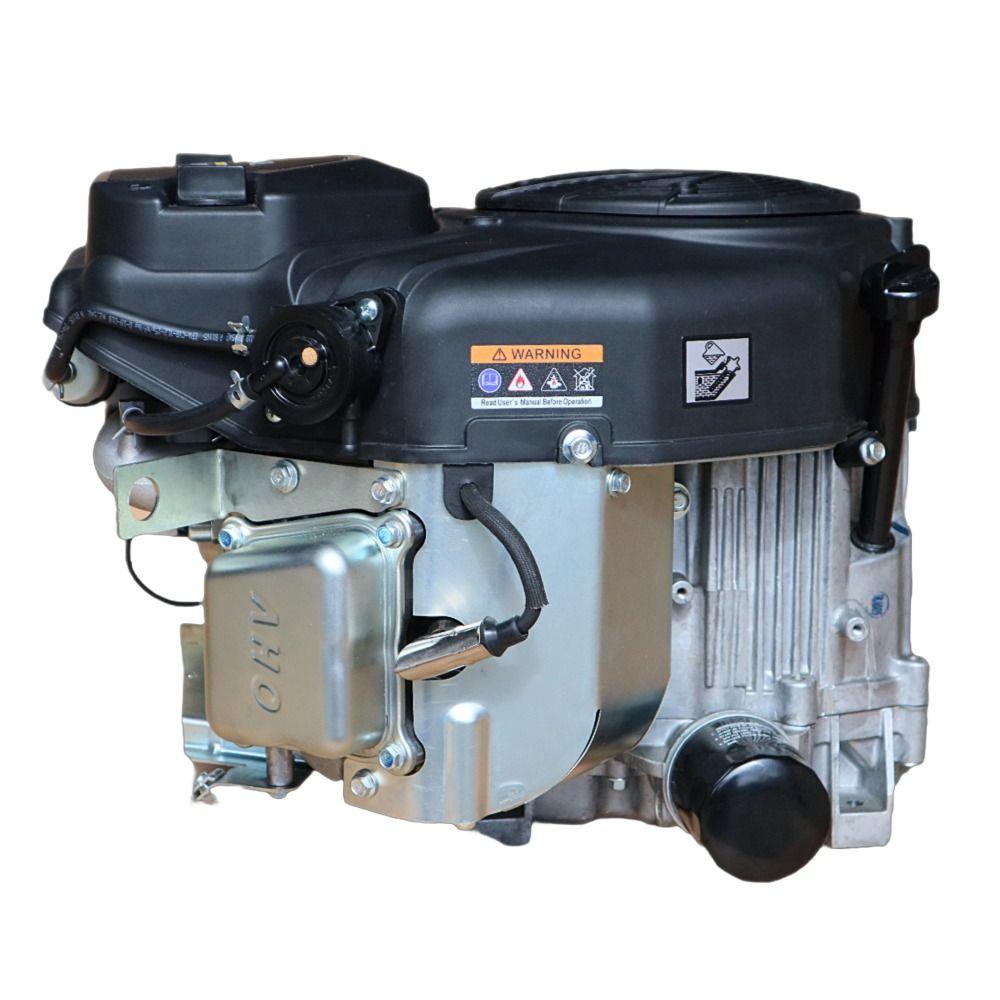

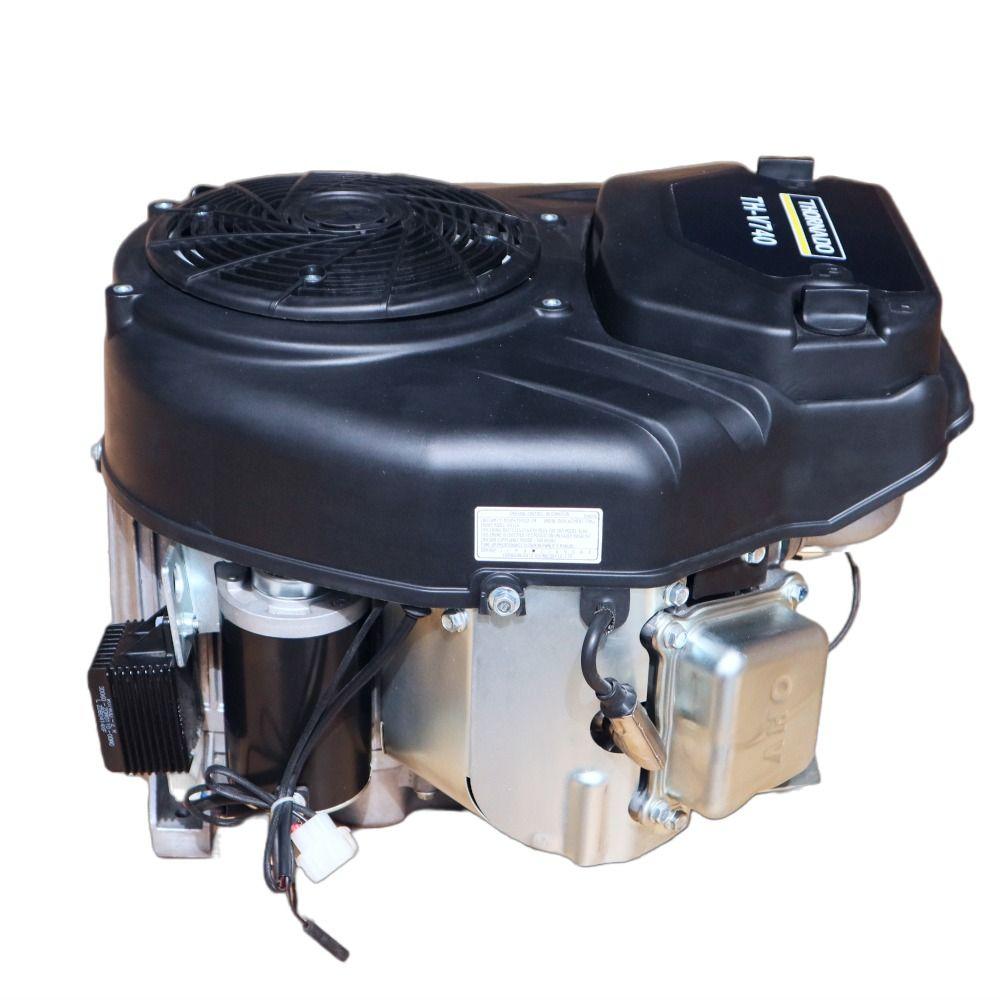

THORNADO 25HP VERTICAL SHAFT PETROL ENGINE V-TWIN 740CC ELECTRIC STARTPrice Guide:$1,399

Name: THORNADO 25HP VERTICAL SHAFT PETROL ENGINE V-TWIN 740CC ELECTRIC START
Brand: Thornado
Price: 1399 AUD
Availability: InStock

Supplier: Thornado

THORNADO 25HP VERTICAL SHAFT PETROL ENGINE V-TWIN 740CC ELECTRIC START

The Thornado 740cc V-Twin vertical shaft engine offers higher power, greater fuel efficiency and stable performance than similar displacement standard twins engine. This engine features a durable cast iron cylinder liner, forged hardened steel crank

In Stock

Features

V-Twin Thornado 25HP (740cc), 4 Stroke OHV Engine
EPAIII emission certified engine
Steel forged and hardened crankshaft.
Durable cast iron cylinder liner withstands wear
High quality carburettor for easy starting and operation
Smooth running with minimal vibration
Low oil sensor shuts down engine when oil reaches a level that is too low for safe operation
Fuel shut off valve for safe transport
High power-to-weight ratio
12 Months Australia Warranty

*T&C’s Apply, see Warranty Policy for full details.

Suitable Applications

Ride on lawn mower, zero turn

SPECIFICATIONS
Model No	TH-V740
Type	V-Twin cylinder 4 stroke OHV, air cooled
Displacement	740cc
Bore x Stroke	82 x 70 mm
Horse Power	25HP /4000 rpm
Max Power	19.2 kW / 3600 rpm
Max Torque	49N.m/2500rpm

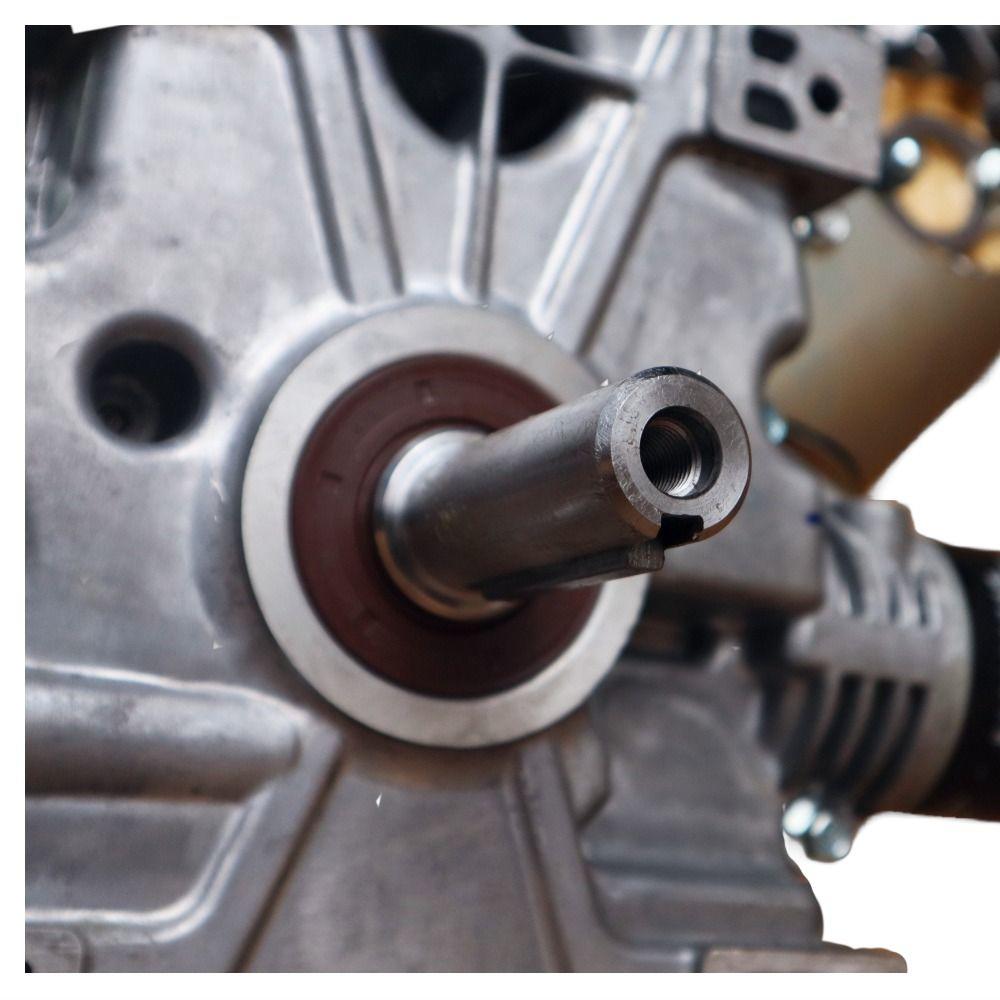

Shaft Type	Vertical Key Shaft
Shaft Diameter	25.4 mm
Shaft Length	72.2 mm
Shaft Rotation	Anti clockwise (vertical output)
Compression Ratio	8.2:1
Fuel Type	Petrol
Oil Type	SAE10w-30 / SAE30
Fuel Tank Capacity	N/A
Oil Capacity	2.0L
Ignition System	Transistorised magneto ignition
Starting System	Electric start
Carburettor	Float carburettor / ECU
Lubrication system	Pressure / Forced splash
Governor system	Centrifugal mechanical
Spark Plug Compatible	NGK – BP-5ES; Torch – F6TC
Valve Clearance – Intake	0.15mm
Valve Clearance – Exhaust	0.20mm
Fuel consumption	<= 370 g/kW.h
Muffler	N/A
Product Length	460 mm
Product Width	445 mm
Product Height	364 mm
Product Weight	38Kg
Certification	EPA III
