Thornado Stationary Petrol Engines | 13HP Recoil Start

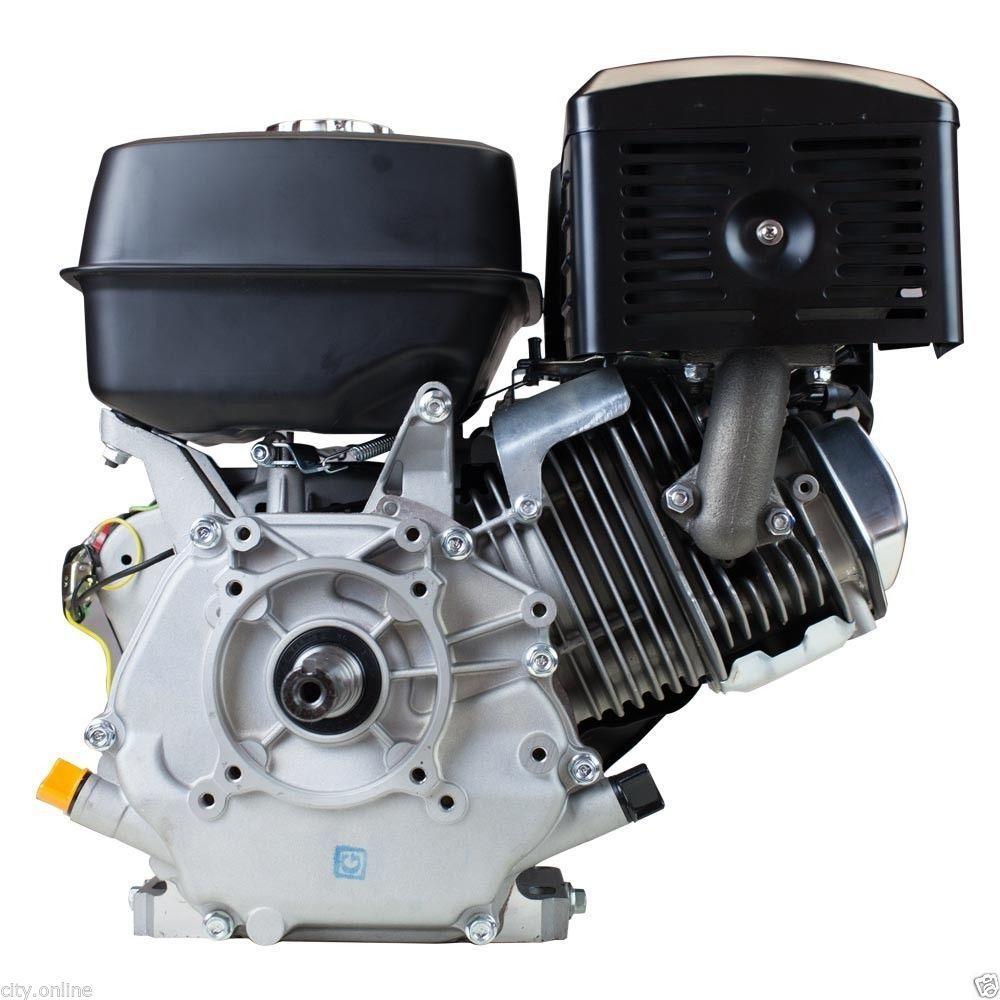

The Thornado 13HP stationary engine is a 4-stroke, single cylinder OHV forced air-cooled petrol engine with a recoil starter that makes it easy to get the equipment running.

In Stock

The horizontal shaft is ball-bearing mounted which make this engine an ideal replacement for most standard engine configurations. This engine features a durable ductile iron crank shaft and cast iron cylinder making it the perfect engine for variety of applications including water pumps, Go-karts, generator, wood chippers, Pressure Washers, Bench saws & other Agricultural uses.

Key Features

Powered by Thornado 13HP (389cc), 4 Stroke OHV Engine
EPA emission certified engine
Upgraded engineering and construction for improved lifespan
Steel forged and hardened crankshaft.
Durable cast iron cylinder liner withstands wear
Automatic compression release
High quality carburettor for easy starting and operation
Smooth running with minimal vibration
Low oil sensor shuts down engine when oil reaches a level that is too low for safe operation
Fuel shut off valve for safe transport
High power to weight ratio
12 Months Australia Warranty

*T&C’s Apply, see Warranty Policy for full details.

Suitable Applications

Water pump
Cement mixers
Air compressors
Mowers
Log spliter
Go-Kart
Generator
Pressure washer
Chippers / shredders
Agricultural uses

SPECIFICATIONS
Model No	TH-130QR
?Type	Single cylinder 4 stroke, air cooled
Displacement	389cc
Bore x Stroke	88 x 64 mm
Max Power	13 HP / 3600 rpm
Max Power	7.8 kW / 3600 rpm
Max Torque	25N.m/2500rpm

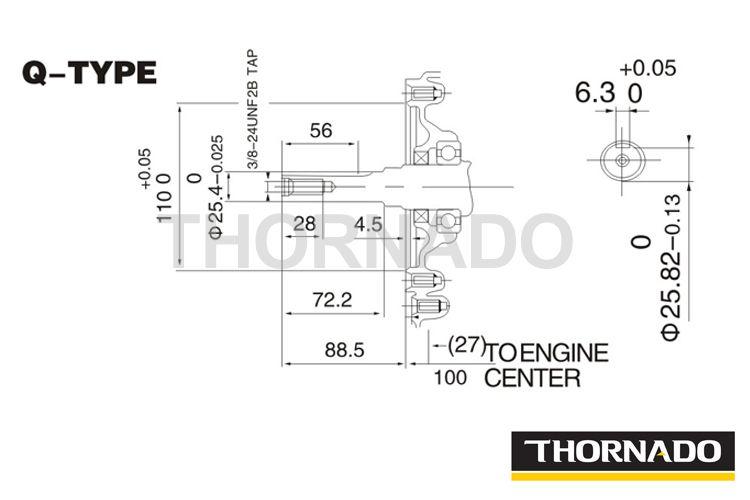

Shaft Type	Horizontal Key Shaft (Q Type)
Shaft Diameter	25.4 mm
Shaft Length	72.2 mm
Shaft Rotation	Anti clockwise from output
Compression Ratio	8.5:1
Fuel Type	Petrol
Oil Type	SAE10w-30 / SAE30
Fuel Tank Capacity	6.5L
Oil Capacity	1.1L
Ignition System	Transistorised magneto ignition
Starting System	Recoil start
Carburettor	Flat suction valve carburettor
Lubrication system	Forced splash
Governor system	Centrifugal mechanical
Spark Plug Compatible	NGK – BP-6ES; Torch – F6TC
Valve Clearance – Intake	0.15mm
Valve Clearance – Exhaust	0.20mm
Fuel consumption	<= 374 g/kW.h
Mounting Pattern	195.5mm x (86-103 mm) (center to center)
Product Length	465 mm
Product Width	415 mm
Product Height	410 mm
Product Weight	31 Kg
Certification	EPA III
