Smart Waste Machine | HFG II with PTO DriveGet latest price

Recommended For businesses

• Mine Sites
• Councils/ Shires
• Waste Transfer Stations

Benefits of the HFG II

• Reduction of waste volume.
• Shredding directly on site .
• Reduction in landfill volume.
• Recycling the shredded material.
• Economic efficiency through “one-man operation”.
• Reducing waste disposal costs.

Specifications

• Drive power (kW) : 55,4 .
• Total weight depending on equipment (kg) total. 3,500 .
• Loading height (mm) ab 1.250 .
• Funnel opening (W x L) (mm) 1.050 x 2.000 .
• Feed opening (W x H) (mm) 780 x 200 .
• Striker width (mm) 780 .
• Schlegel (number) 16 .
• Ejection height conveyor belt (mm) 1.200 .
• Conveyor belt width (mm) 780 .
• Throughput (cbm/h) 10 to 25 .
• Machine dimensions with conveyor belt (L x W x H) (mm) 7.100–7.350 x 1.670 x 2.350 .

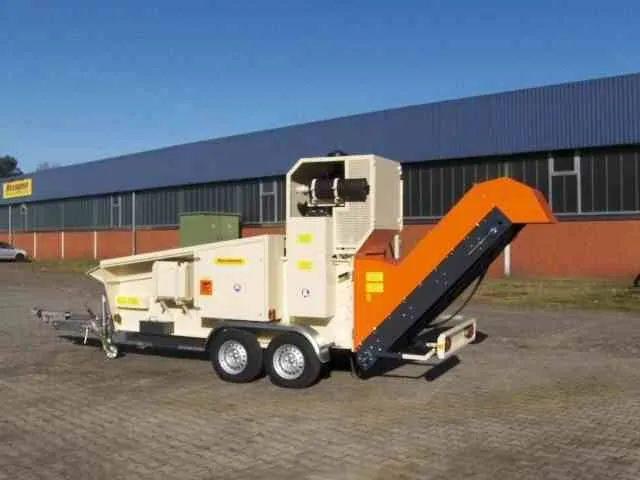

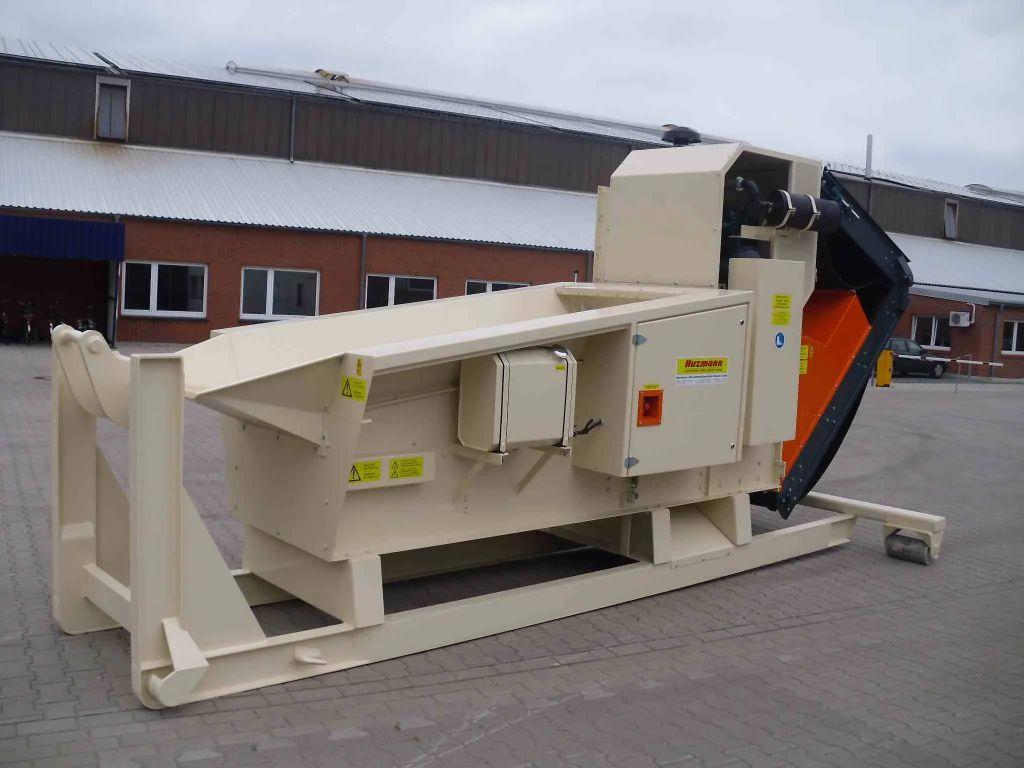

HFG II With PTO Drive

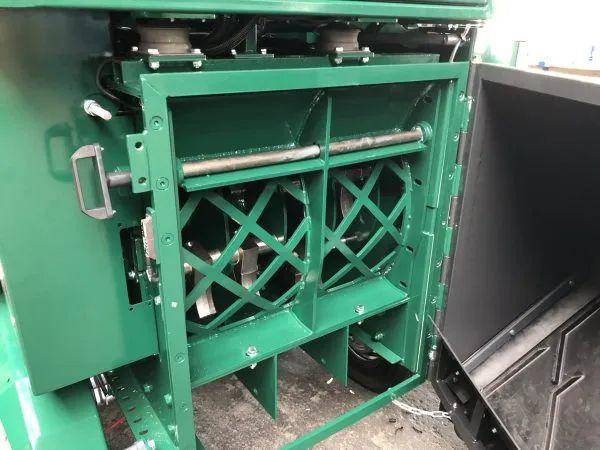

These powerful Smart Waste devices with the basic name “HFG” achieve an even, fine and clean shredding. The shredding machine, equipped with free-swinging hammers, has optimal power-Implementation for high throughput and energy utilization through impact transmission a breaking edge.

This ensures homogeneous comminution of the supplied material without the need for time-consuming subsequent processing. shredding guaranteed. The impact technique causes the material to be shredded, such as: B. green waste and tree trunks, defibers and is ideal for composting.

The HFG series starts in the smaller version with the HFG I, through the HFG II to the HFG VI. The machine types are equipped with and achieve a drive power of up to 556 kW Throughput rates of up to 250 cbm per hour.
