Industrial Shredder | AZ50HD 37kW Dual Shaft Shredder

Name: Industrial Shredder | AZ50HD 37kW Dual Shaft Shredder
Brand: Brentwood Recycling Systems

Supplier: Brentwood Recycling Systems

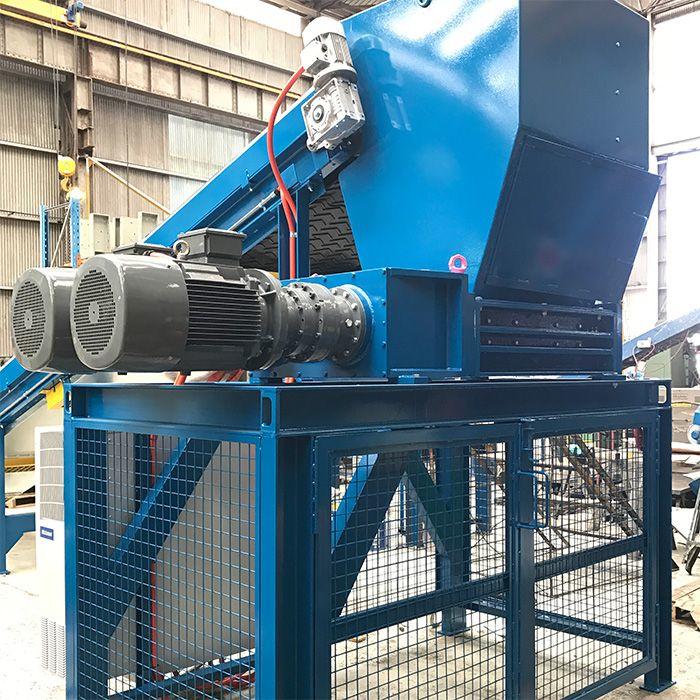

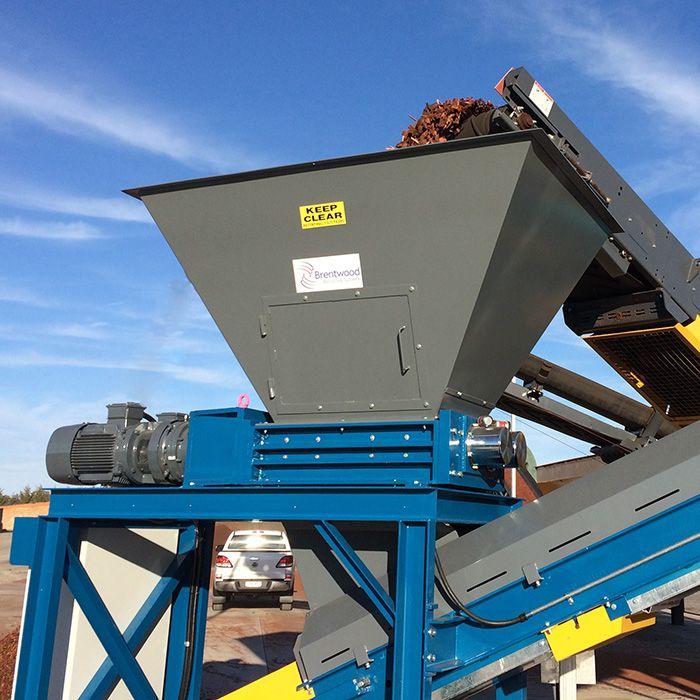

Brentwood’s AZ50HD is a powerful and robust dual shaft shredder designed for the toughest applications.

55 Recent ViewsContact us for availability

The AZ50HD is our most popular and versatile shredder. Originally developed to eliminate shaft breakages common on smaller machines in tough applications such as paper and tyre shredding, the AZ50HD has proven itself to be a reliable and robust performer.

With 229mm shaft centres the AZ50HD is a capable shredder for heavy duty applications and can be configured with customised cutting chamber lengths.

This unit can be configured to shred most materials including paper, tyres, oil filters, steel drums and medical waste.

Product Features:

2 x 18.5kw coupled drives for maximum cutting force at each cutter
High torque/low speed
120mm hexagonal shaft for superior strength
Planetary reduction gearboxes for exceptional duty cycle and low noise
High surface hardness/high core strength repairable alloy cutters
20, 31, 47, 62 or 94mm wide cutters in single or multi hook arragnements
DOL or VSD control panels with auto reverse and overload protection.
Wide range of cutter widths and hook types to suit different materials and output size requirements
Wide range of infeed and discharge options
Australian made for Australian conditions

Product Specifications:

Power	37 kW (2 x 18.5kW)
Full Load Current	66 amps
DOL Starting Current	536 amps
Shaft Centres	229 mm
Shaft Diameter	120 mm
Standard Cutting Chamber Lengths	1060/1180/1274 mm
Cutting Chamber Width	599 mm
Machine Length	3127 mm
Machine Width	1048 mm
Machine Height	425 mm
Weight	2300 kgs
Cutter Width Options	20/31/47/62 mm
