Features:

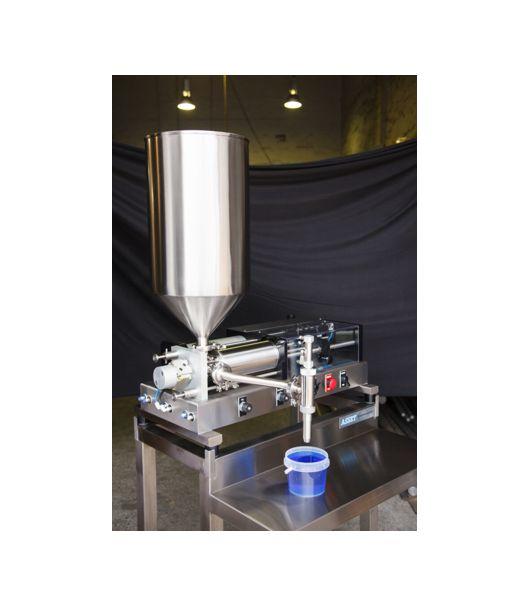

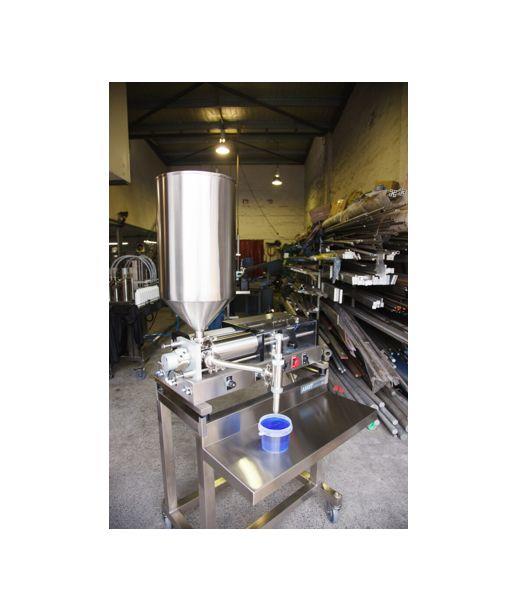

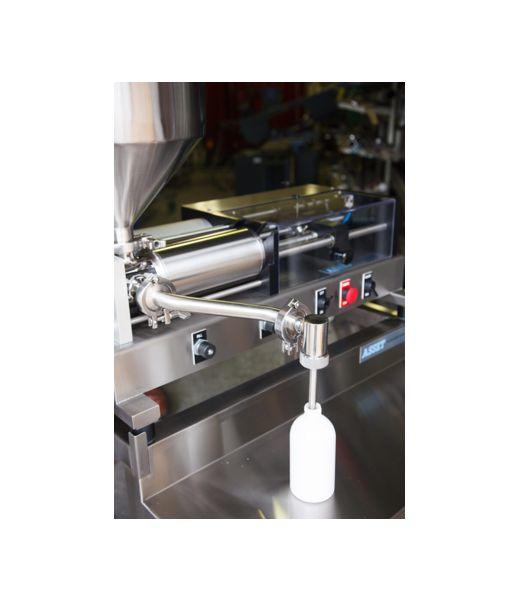

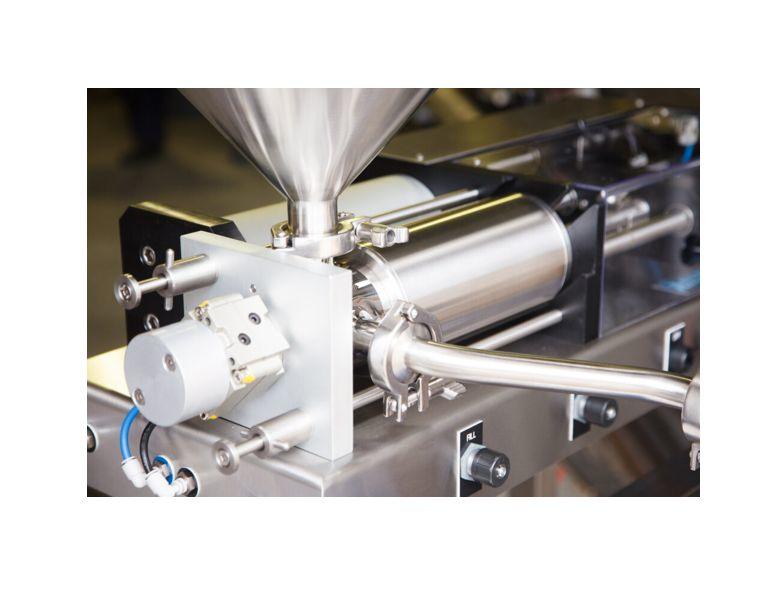

The versatility of this all pneumatic machine has now been enhanced with a completely new compact design volume adjustment and cylinder assembly incorporating a revolutionary rotary valve system, an Australian Registered Design developed by Asset for the AV3’s big brother, the AMF Series multi cylinder filler.
The new valve system handles bottling products from thin liquids to creams and thick pastes, it will even products with soft suspended solids, a task previously requiring 2 different types of filling machine or expensive change parts.
The new cylinder design enables quicker dismantling and easier, more thorough cleaning of wet parts. Various product supply methods can be used according to the nature of product or customer preference e.g. close coupled hopper, suction hose inlet assembly, elevated or floor level tank, and low-pressure feed from a pump.
Although designed primarily for trolley mounted semi-automatic operation the, AV3 series design can be incorporated into a conveyor line or specialised automatic filling application.

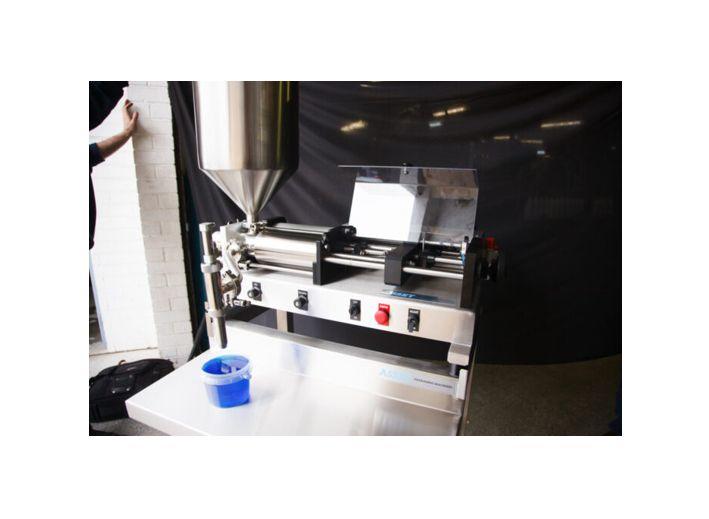

The stroke adjuster and air/product cylinder drive assembly are enclosed by a safety interlocked polycarbonate cover.
Additional features:
Options
