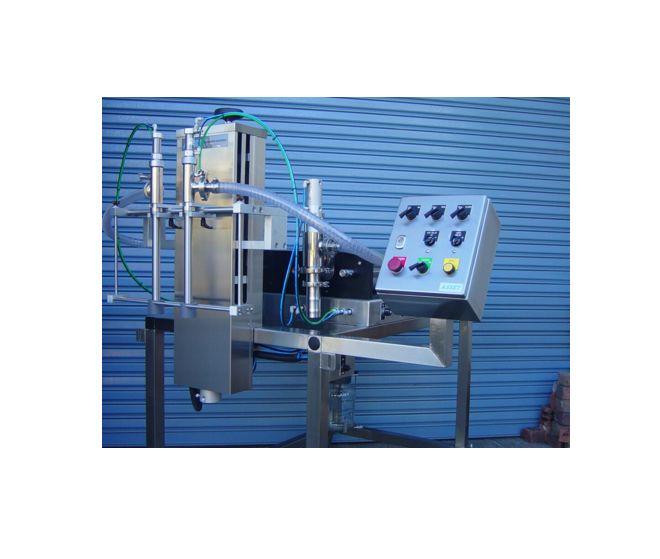

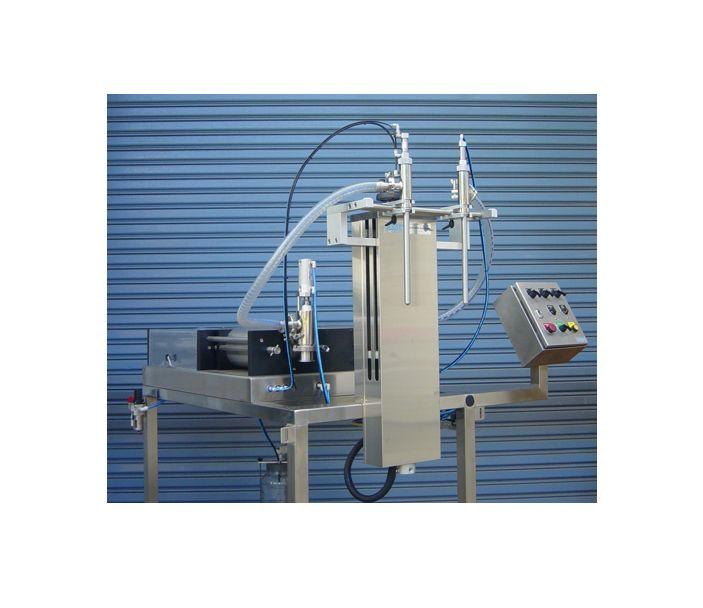

The Asset AV5 series of automatic filling machines offer a simple to operate heavy duty design with a proven history of reliability and ease of cleaning.
Description
Fast and consistent container filling
In Stock
Features:
Bulk filling of liquids, creams, pastes and suspensions between 500ml to 5000ml
Twin cylinder filling for faster output
Fast and consistent container filling, every time
Heavy duty design to last you for decades
Simple operation
Easy cleaning of wet parts
The versatility of this all pneumatic machine has now been enhanced with a completely new compact design, volume adjustment and cylinder assembly incorporating air operated Spool Valves.
The valve system handles products from thin liquids to creams and thick pastes, even products with soft suspended solids.
The new cylinder design enables quicker dismantling and easier more thorough cleaning of wetted parts. Various product supply methods can be used according to the nature of product or customer preference e.g. suction hose to elevated or floor level tank, or low-pressure feed from an external pump.
Trolley mounted with lockable castors for connection to a continuously running slat conveyor the AV5-2C comes complete with “no bottle no fill” safety device and container gating.
Ideal for use in a range of industries including Chemical and Automotive.
The stroke adjuster and air cylinder/product cylinder drive assembly are enclosed by a safety interlocked polycarbonate cover.
Additional features:
Heavy duty pneumatic product cylinder drive system
Integral 304-grade stainless steel base and cladding mounted on a stainless-steel trolley
Bottom up fed nozzle assembly
Wetted parts manufactured from 316-grade stainless steel and food grade engineering plastic
Product piston fitted with O-ring energised teflon/HDPE glide ring seal
