Fully integrated, servo-driven monobloc system for precise and versatile liquid filling and capping.
Overview

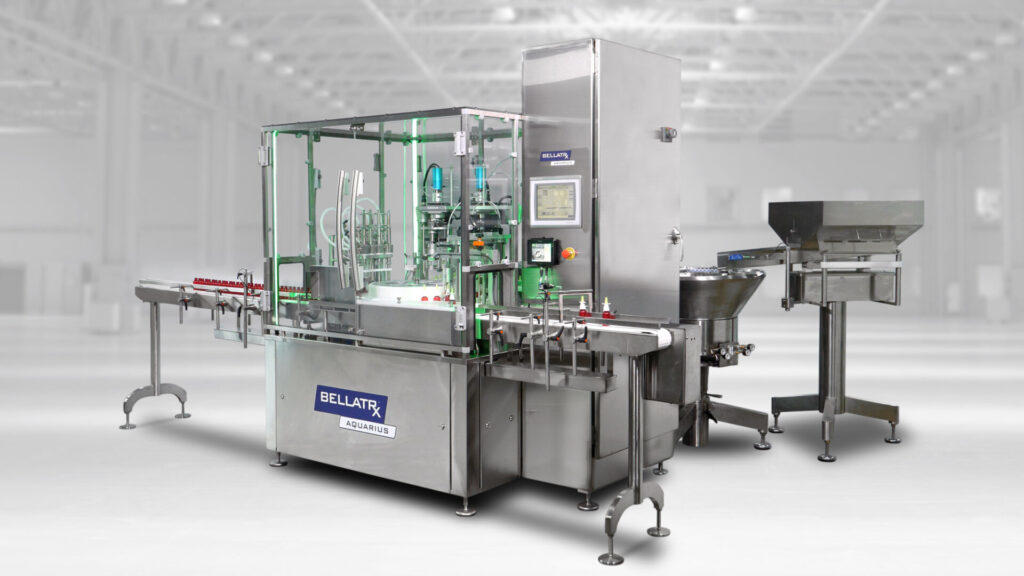

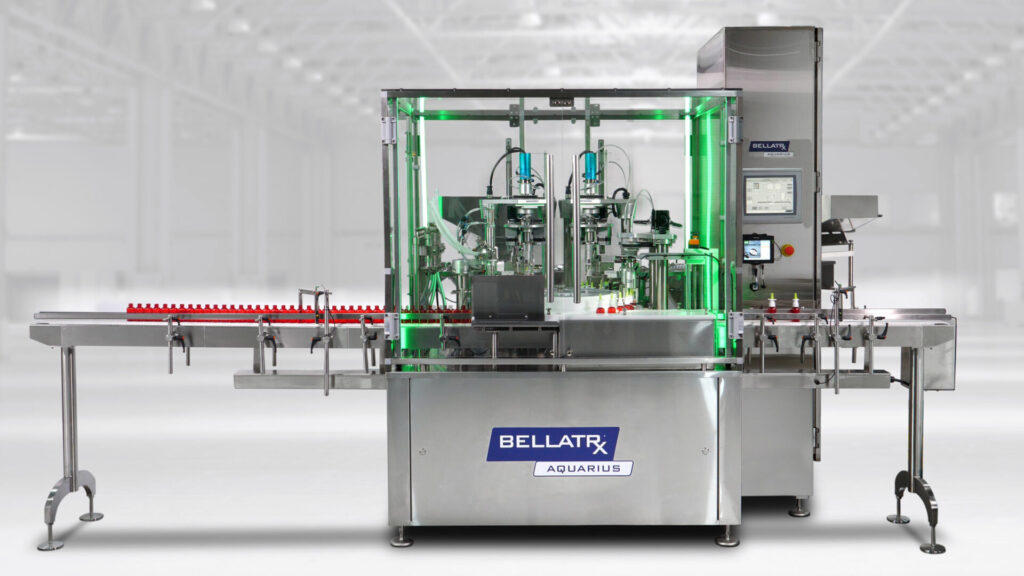

This automated liquid filling machine is engineered for flexibility and high precision. The compact Aquarius Monobloc utilises a fill-plug-cap-torque system, optimised for processing a variety of containers in specialised environments, including pharma and food.
Key Features & Benefits
- Servo motion controller for synchronising operational stations
- Servo-powered 16-pocket starwheel with backing plate
- Operates at speeds up to 55 cycles per minute (single index configuration)
- Nozzle dive station with adjustable, servo-controlled stroke
- Plug and cap sorting via 304 Stainless Steel electromagnetic vibratory bowls
- Servo-driven starwheel for precise pick-up at plug and cap stations
- Adjustable torque control from 0.23–3.39 Nm (2–30 inch lbs.) using servo motor
- Status beacons (green, amber, red) with white illumination when guard doors open
- Equipped with Allen Bradley PLC (Compact Logix series) and HMI Panel View Plus 10?
- Compact footprint suitable for limited spaces
- Option for HEPA hood, labelling, nitrogen purge, and more
Applications
- Pharmaceutical and nutraceutical packaging
- Chemical, biotech, and diagnostics industries
- Cosmetics and personal care
- Food and beverage
- E-liquid products
Dispensing Mechanism
Precision filling is achieved through volumetric piston or peristaltic pumps and diving nozzles. The servo-driven starwheel ensures every container is accurately processed, even with variable fill volumes.
Optional Enhancements
- HEPA hood
- Nitrogen purge
- Integrated labelling
Videos & Case Studies
- Options available for eye drops, nasal care, diagnostics, scented oils, serums, and more
