Applications for this product

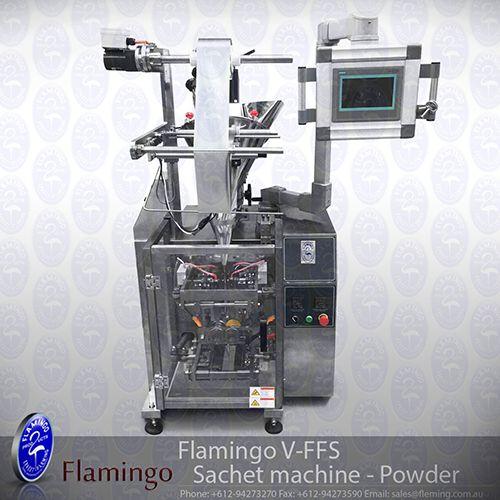

- Flamingo VFFS forms sachets from a sheet of laminated plastic (roll stock); prints batch number and expire dates (Lot #s, Expiration dates, etc) onto each sachet; measures a given quantity of product and introduces it into each sachet; and Seals every sachet and separates them into individual units. The machines also have ability to pack 3 or 4 side sealed sachets, or pillow packs. All areas in contact with product are made of Stainless Steel.
- Sachet presentation: max 11 mm width Vertical Seal width Easy Tare cut (linear or grid texture), max 8 mm Horizontal Seal width (linear texture or grid)
Features of this product
- - Constant Heat Sealing System for BOPP and laminated materials - Integrated Volumetric Auger Filler (2-200g) accuracy 2% - Siemens PLC and Touch Screen - 20 liter Hopper with Product Agitator - Product Level Sensor in Hopper to prompt automatic top-up - Stepper Motor Driven Film Pull - Film Eye mark (cut marks) detection photoelectric pin point sensor - Fully integrated U2 Pro-S Inkjet coder for batch and expire date coding (up to 4 lines, 12.7mm height) (optional) - Former Product Vibrator function - Film pull support motor mechanism - Cold-Cutting System (zig-zag, straight style) - Optional: Powder Screw Elevator integration ready, with Flamingo Auger Transfer Conveyor
Why choose this product
- Compact
- Versatile
- Integrated with ANSER Coding Solution
Specifications of this product
- production speed ppm 10-60 input voltage V 240V/50-60Hz pack dimension 60-150mm (L) , 50-135mm (W) material type free flowing powder film type Printed or clear BOPP, laminated films width mm 1200 height mm 1840 length mm 1620 weight kg 18
To contact Ernest Fleming Machinery & Equipment Pty Ltd about V-FFS Sachet maker - Volumetric Cup Filler use Get a quote.
