Features:
The versatility of this all pneumatic machine has now been enhanced with a completely new compact design, volume adjustment and cylinder assembly incorporating a revolutionary rotary valve system, and Australian Registered Design developed by Asset for the AV3’s big brother, the AMF Series Multi-Cylinder Filler-4C filler.

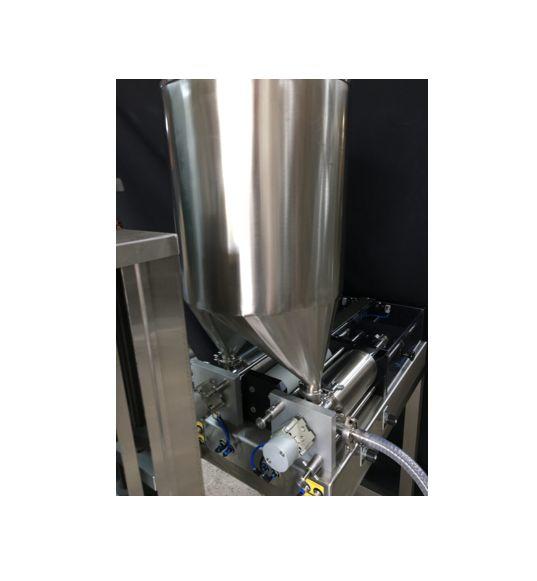

The new valve system handles products from thin liquids to creams and thick pastes, even products with soft suspended solids, a task previously requiring 2 different types of filling machine or expensive change parts. The new cylinder design enables quicker dismantling and easier more thorough cleaning of wetted parts. Various product supply methods can be used according to the nature of the product or customer preference e.g. close coupled hopper, suction hose to elevated or floor level tank, or low-pressure feed from and external pump.

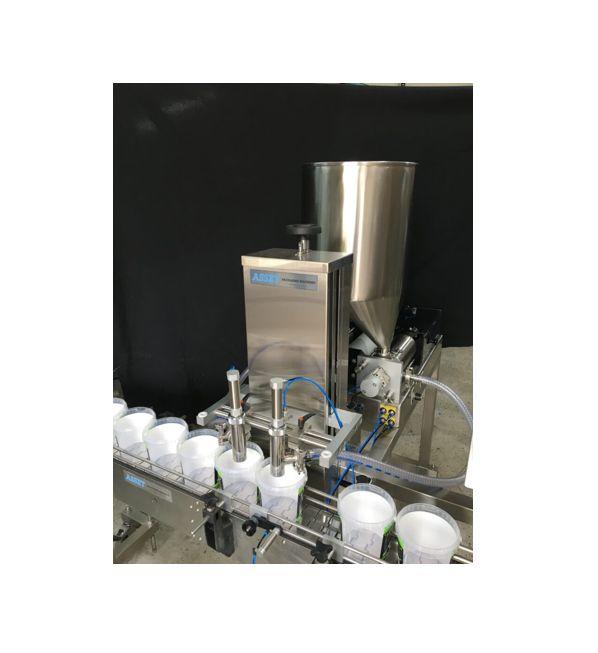

Trolley mounted with lockable castors (wheels) for connection to a continuously running slat conveyor the AV3-2C comes complete with “no bottle no fill” safety device and container gating.
Ideal for use in the food industry for filling sauces (hot or cold), pate, dairy products, honey or any liquid, cream or paste type product.

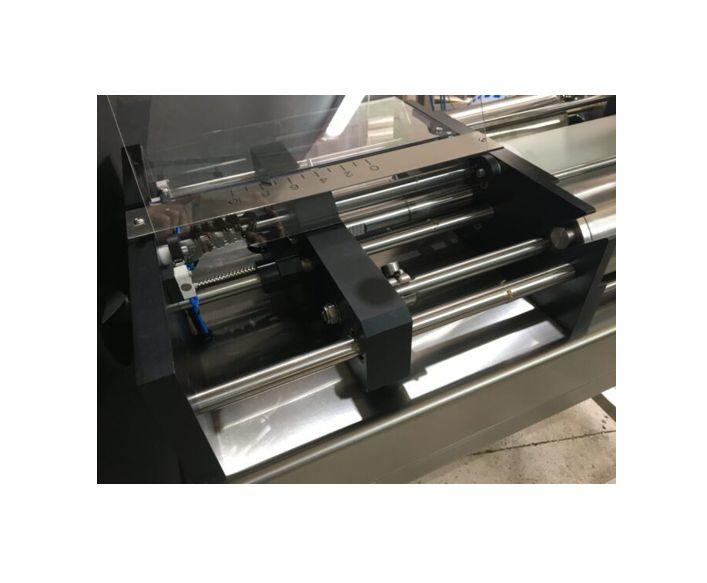

The stroke adjuster and air cylinder/product cylinder drive assembly are enclosed by a safety interlocked polycarbonate cover.
Additional features:
Options
To contact ASSET Packaging Machines about Volumetric Filling Machine | AV3-2C use Get a quote.
