Four Shaft Shredder | Electrical Waste Shredder

Name: Four Shaft Shredder | Electrical Waste Shredder
Brand: Enerpat

Supplier: Enerpat

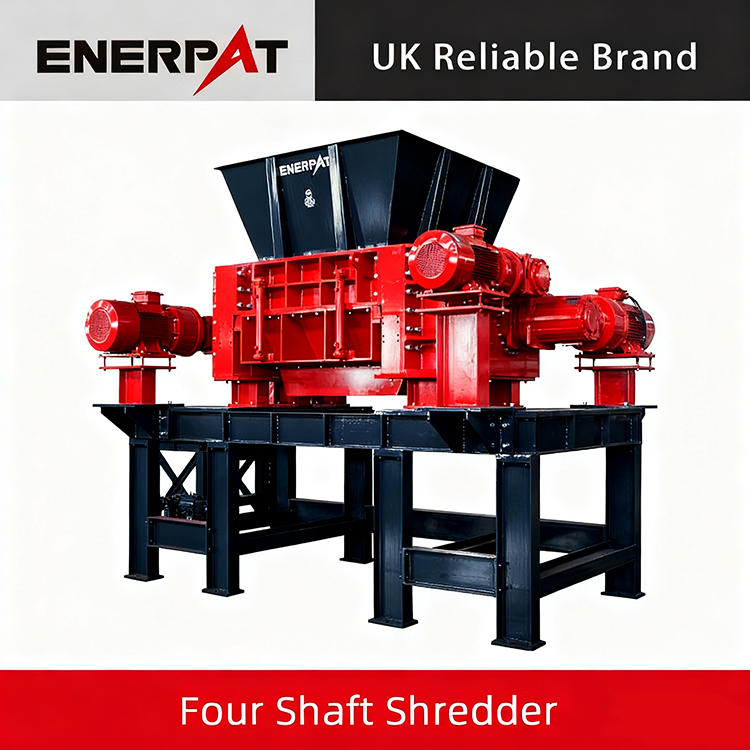

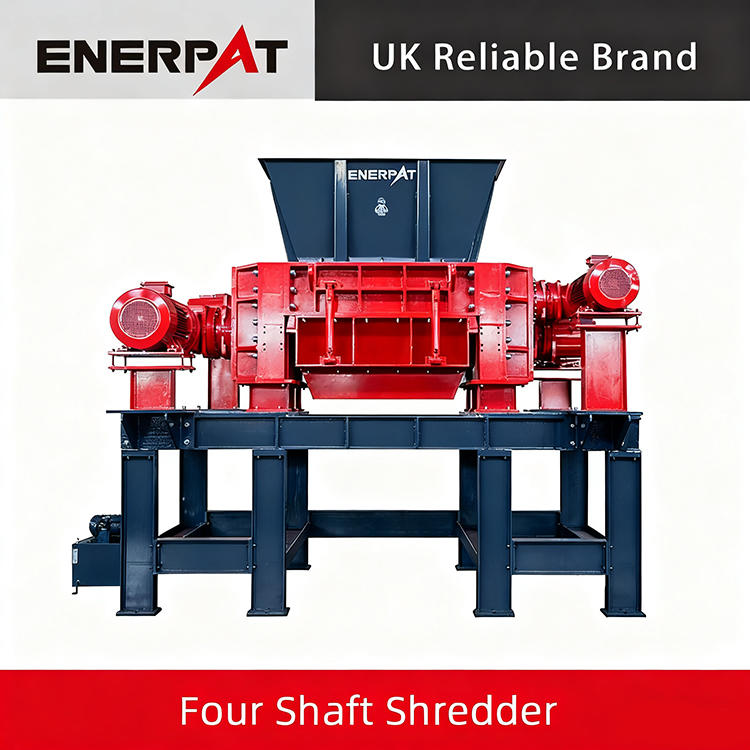

The Four Shaft Shredder is a powerful and durable machine designed for efficiently downsizing materials such as e-waste, scrap tyres, and other difficult waste streams.

Purpose-built for efficiently shredding tough waste materials with minimal downtime.

The four shaft shredder, often called a quad shaft shredder, is ideal for downsizing a variety of waste materials including e-waste, scrap tyres, RDF feedstock, and other contaminated or mixed materials. Designed to work in demanding conditions, it features four sets of counter-rotating cutters to shear and tear through both rigid and flexible stock, especially effective on metals.

Key Features

Detachable shredder chamber for easy maintenance.
Heavy-load planetary reducer provides robust torque transmission.
Detachable cutter blades minimise downtime during maintenance.
Equipped with a Siemens/Schneider PLC touch screen control panel for efficient operation.
Quadruple sealed bearings for dust and water protection.
Splined main shaft with a large surface junction to reduce stress concentration and increase crushing efficiency.
Heavy-load self-aligning bearings from leading brands (FAG, SKF) for increased reliability.

Applications

E-waste (electrical and electronic waste)
Scrap tyres
Refuse-derived fuel (RDF)
Contaminated and mixed rigid/flexible materials
Metals, lithium batteries, home appliances, mattresses, and sofas

Technical Specifications

Model	Motor Power (kW)	Shredding Chamber Length (mm)	Machine Size (mm)
MSC-E800	37–45	800	3145 × 1555 × 2551
MSC-E1000	2 × 15 + 2 × 22	1000	3945 × 1980 × 3080
MSC-E1300	2 × 37 + 2 × 15	1300	4300 × 4500 × 3000
MSC-E1600	2 × 75 + 2 × 45	1600	4650 × 4800 × 3500
MSC-E1900	2 × 90 + 2 × 55	1900	5000 × 5000 × 4000

Successful Case Examples

Lithium battery shredding: 1,200 kg/h capacity
Household appliance shredding: 4 t/h capacity
Mattress and sofa shredding: 6 t/h capacity

Construction & Maintenance

Shredder chamber housing is removable for access to couplings and bearings.
Blade replacement is designed to be completed quickly by loosening and tightening bolts.
Sealing and bearing system is built for long operation life, including use in outdoor and dusty environments.
