Custom Metal Fabrication Services | Stainless Steel Mix StationsGet latest price

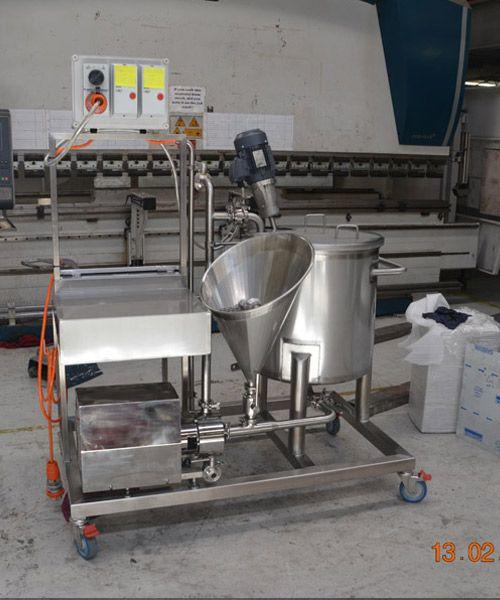

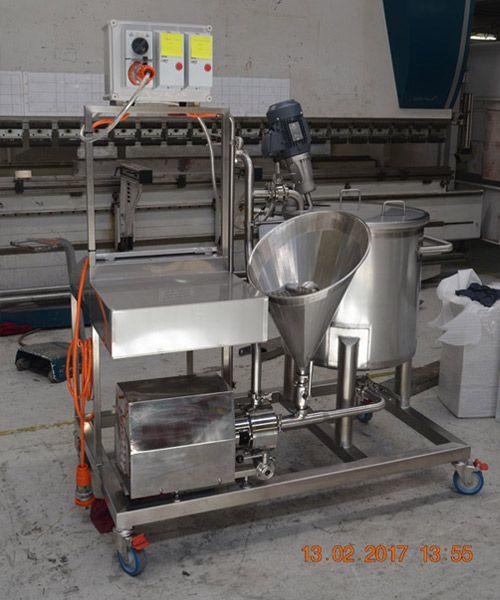

The purpose of the mixing station is to provide a mobile multi-function mixing system that creates pre-blends of expensive additives, mixes smaller quantities of complex batches or provides the mixing action required for a processing plant.

Often the customer has an expensive active ingredient that needs to be blended into a large quantity of base liquid and so the best method to achieve this is to pre-blend this active ingredient into a smaller quantity of base liquid and once this is done, the pre-blend is added to the larger batch.

Another scenario is where powder is needed to be added to a liquid base and the powder tends to sit on top of the liquid in the mix tank when added and/or separates into balls of unmixed powder. By adding the powder in through the powder inductor cone, the powder is shear mixed into the liquid stream resulting in a completely homogenous mix in a far shorter time frame than adding the powder on top of the liquid in a mix tank.

Many options can be included such as divert lines so the mixed product can be transferred elsewhere after it is mixed. Where the product is very expensive, a sliding catch tray can be included to capture residual product left in the recirculation pipework and the pump head after the mixing process is finished.
