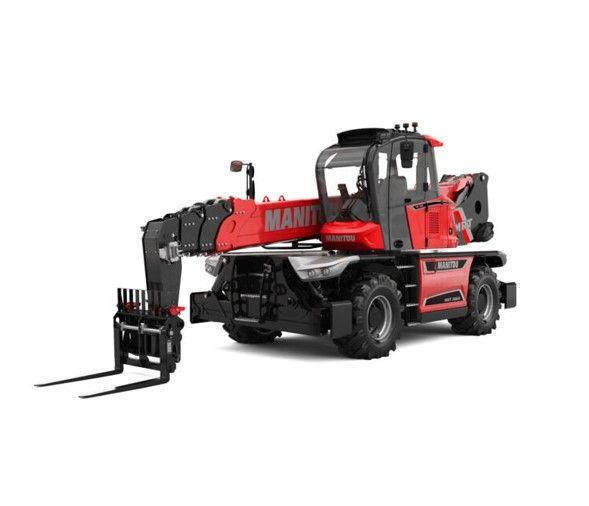

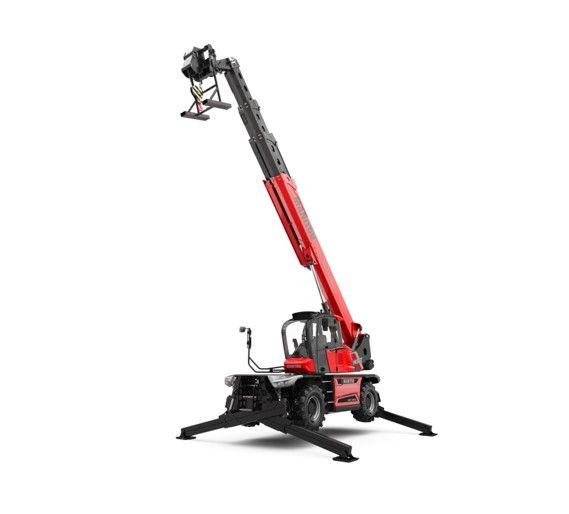

Rotating Telescopic handler | MRT-X 2660 Get latest price

By combining the capabilities of 3 machines in 1 (telescopic handler, winch and aerial work platform), the MRT-X 2660 is a truly versatile tool for your handling operations. The MRT-X 2660 can lift up to 6 tonnes, while maintaining precise control over your loads, thanks to its pentagonal boom section and exceptional 360° visibility. Its 360° rotation capability allows you to perform different operations without having to move the machine. It can be used on tires or stabilizers, which provide a larger support surface for safe working. Smart, ergonomic and comfortable, the MRT-X 2660 is ideal for construction and industrial applications. It's a powerful and precise tool that you won't be able to do without!

TECHNICAL FEATURES

Capacities

• Max. capacity

  • 6000 kg
• Max. lifting height

  • 25.90 m
• Max. outreach

  • 21.70 m

Weight and dimensions

• Overall width

  • 2.50 m
• Overall height

  • 3.10 m
• Overall cab width

  • 0.96 m
• Ground clearance

  • 0.36 m
• Wheelbase

  • 3.05 m
• Tilt-up angle

  • 12 °
• Tilt-down angle

  • 112 °
• Turret rotation

  • 360 °
• Overall weight

  • 18000 kg
• Forks length / width / section

  • 1200 mm x 100 mm x 60 mm

Wheels

• Standard tyres

  • 445/65 R22,5
• Drive wheels (front / rear)

  • 2 / 2
• Steering mode

  • 2 wheel steer, 4 wheel steer, Crab mode

Stabilisers

• Stabs Type

  • Telescopic Duplex
• Controls with stabs

  • Stabs Commands Individual or Simultaneous

Engine

• Engine brand

  • Yanmar
• Engine norm

  • Stage IIIA / Interim Tier 4
• Engine model

  • 4TN107FHT-6SMU1
• I.C. Engine power rating / Power (kW)

  • 156 Hp / 115 kW
• Max. torque / Engine rotation (min)

  • 602 Nm @ 1500 rpm
• Number of cylinders - Capacity of cylinders

  • 4 - 4567 cm³
• Engine cooling system

  • Water cooled
• Number of batteries / Battery / Batteries capacity

  • 2 x 12 V / 120 Ah
• Battery starting current

  • (EN)850 A

Transmission

• Transmission type

  • Hydrostatic with Speedshift
• Gearbox / Number of gears (forward) / Number of gears (reverse)

  • Speedshift 2 / 2
• Max. travel speed

  • 40 km/h
• Parking brake

  • Automatic negative parking brake
• Service brake

  • Oil-immersed multi-discs braking on front & rear axles

Hydraulics

• Hydraulic pump type

  • Load sensing pump
• Hydraulic flow

  • 185 l/min
• Hydraulic Pressure

  • 350 bar

Tank capacities

• Engine oil

  • 13 l
• Hydraulic oil

  • 260 l
• Fuel tank

  • 270 l

Miscellaneous

• Steering wheels (front / rear)

  • 2 / 2
• Controls

  • 2 Joysticks
• Safety cab homologation

  • ROPS - FOPS cab (level 2)
• Attachment recognition system (E-Reco)

  • Standard
