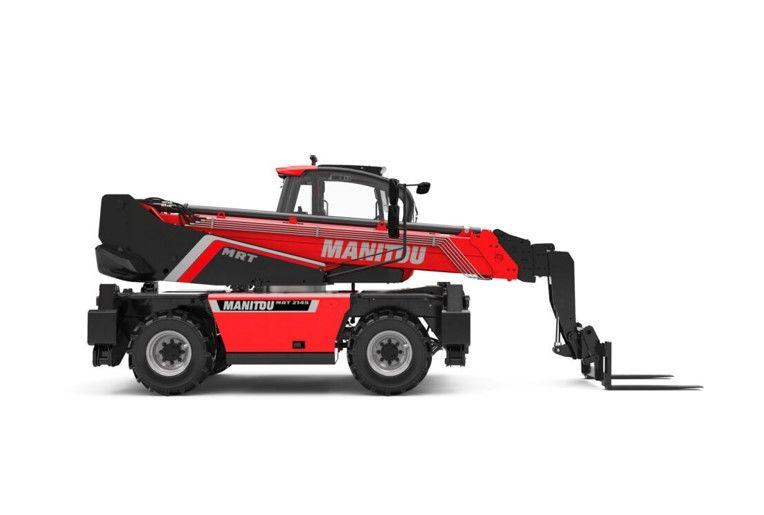

Rotating Telescopic handler | MRT-X 2145 Get latest price

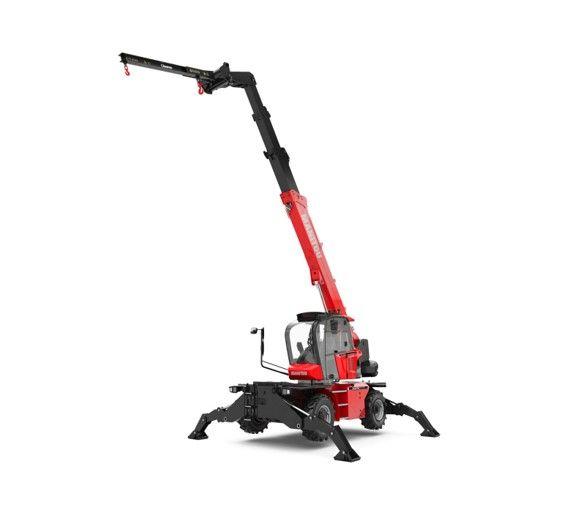

The MRT-X 2145 is a high-performance, all-terrain rotating telescopic handler. A telehandler, winch and aerial platform in one, this machine is a true Swiss Army knife, ideal as the first piece of equipment on the construction site. Its distinctive and dynamic design provides maximum visibility and productivity. The intelligent and secure controls make the telehandler easy and intuitive to operate. Stabilizers ensure balance and safety when maneuvering. With its different steering modes and hydrostatic transmission, the MRT-X 2145 offers perfect maneuverability, whatever the job. The MRT-X 2145 is a comfortable and ergonomic machine you will never want to be without.

TECHNICAL FEATURES

Capacities

• Max. capacity

  • 4500 kg
• Max. lifting height

  • 20.60 m
• Max. outreach

  • 18 m

Weight and dimensions

• Overall width

  • 2.50 m
• Overall height

  • 3.04 m
• Overall cab width

  • 0.96 m
• Ground clearance

  • 0.37 m
• Wheelbase

  • 2.73 m
• Tilt-up angle

  • 10 °
• Tilt-down angle

  • 107 °
• Turret rotation

  • 400 °
• Overall weight

  • 14900 kg
• Forks length / width / section

  • 1200 mm x 125 mm x 50 mm

Wheels

• Standard tyres

  • 18-19,5
• Drive wheels (front / rear)

  • 2 / 2
• Steering mode

  • 2 wheel steer, 4 wheel steer, Crab mode

Stabilisers

• Stabs Type

  • Spider Type
• Controls with stabs

  • Stabs Commands Individual or Simultaneous

Engine

• Engine brand

  • Deutz
• Engine norm

  • Stage IIIA / Interim Tier 4
• Engine model

  • TCD 3.6 L4
• I.C. Engine power rating / Power (kW)

  • 116 Hp / 85 kW
• Max. torque / Engine rotation (min)

  • 460 Nm @ 1600 rpm
• Number of cylinders - Capacity of cylinders

  • 4 - 3620 cm³
• Engine cooling system

  • Water cooled
• Number of batteries / Battery / Batteries capacity

  • 2 x 12 V / 120 Ah
• Battery starting current

  • (EN)850 A

Transmission

• Transmission type

  • Hydrostatic
• Number of gears (forward / reverse)

  • 2 2
• Max. travel speed

  • 40 km/h
• Parking brake

  • Automatic negative parking brake
• Service brake

  • Oil-immersed multi-discs braking on front & rear axles

Hydraulics

• Hydraulic pump type

  • Load sensing pump
• Hydraulic flow

  • 116 l/min
• Hydraulic Pressure

  • 275 bar

Tank capacities

• Engine oil

  • 11 l
• Hydraulic oil

  • 150 l
• Fuel tank

  • 133 l

Miscellaneous

• Steering wheels (front / rear)

  • 2 / 2
• Controls

  • 2 Joysticks
• Safety cab homologation

  • ROPS - FOPS cab (level 2)
• Attachment recognition system (E-Reco)

  • Standard
