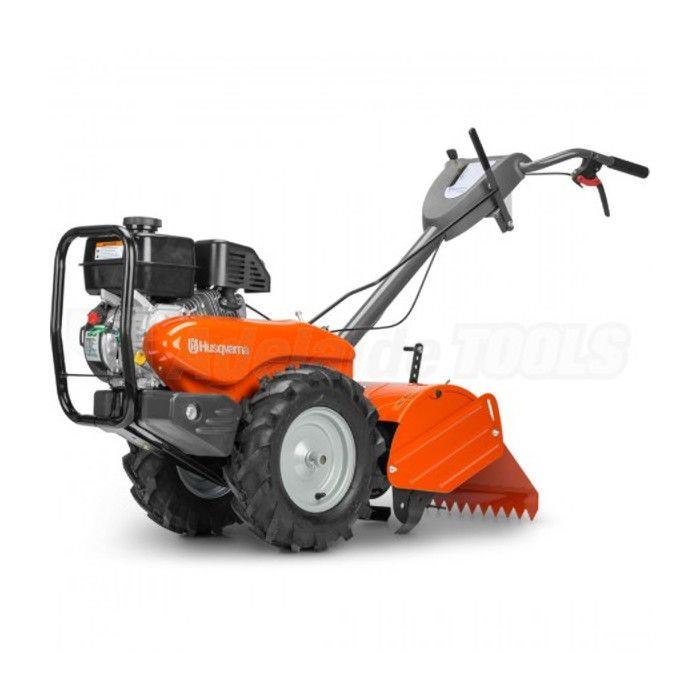

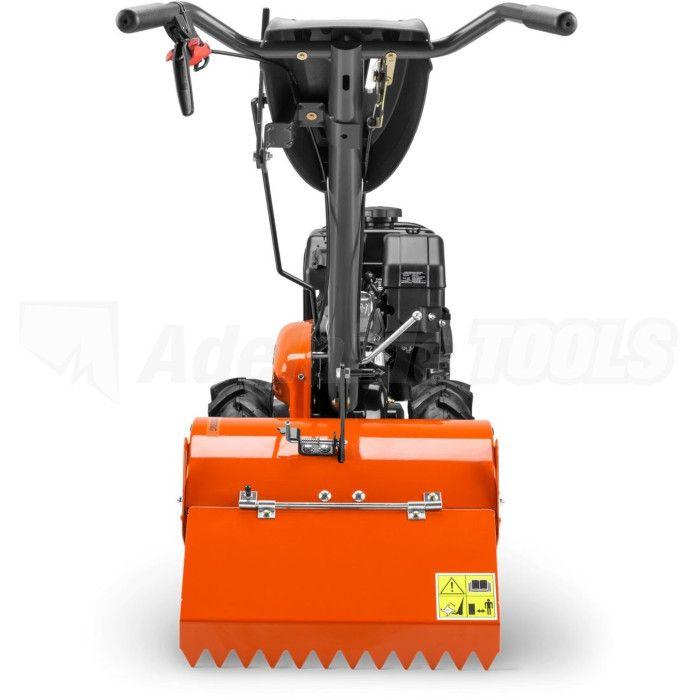

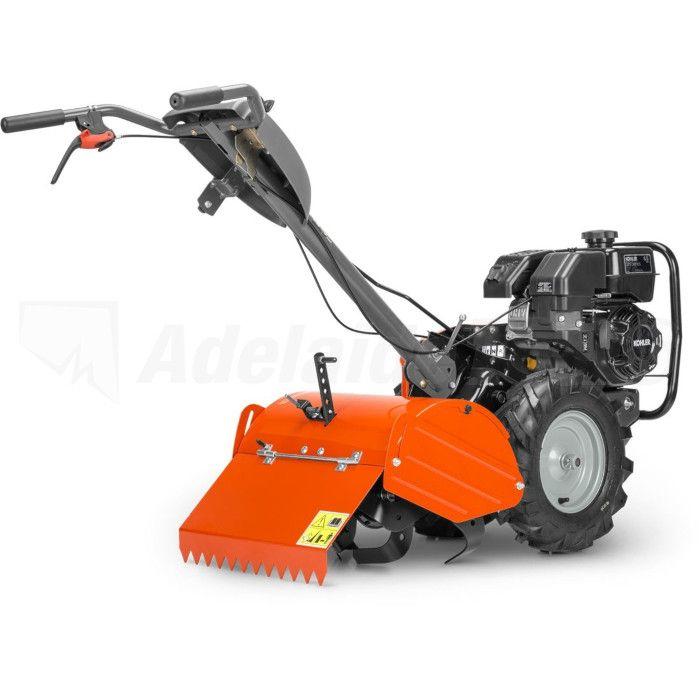

Rear Tine Cultivator | TR 430 3.14kWGet latest price

Large wheels with chevron tyres and counter-rotating tines provide superior access for braking up the soil. Chain drive on rotors and wheels, plus reverse gear. Handlebar height is adjustable for ergonomic operation.

Two gears
One gear forward and one reverse, for easy operation..

Counter-rotating tines
Tines rotate anti-clockwise, so the soil is broken up very well. Capable of deep-digging heavy soil or preparing the surface for a seed bed.

Driven wheels with chevron tyres
Large wheels with heavy treads for optimised grip.

Counterweight
For safe and sturdy operation. The counterweight increases weight on the wheels and improves balance.

Adjustable handlebar
Adjustable handlebar for customised comfort.

Easy-access controls
Controls are easily accessible and designed for optimum user comfort.

TR 430 3.14kW Rear Tine Cultivator Specifications:

Engine

• Cylinder displacement: 196.0 cm³
• Rotational speed: 190 rpm
• Motor/engine manufacturer: Kohler
• Engine name: Courage

Capacity

• Tine diameter: 330 mm
• Working depth: 16.51 cm
• Working width: 43 cm
• Cultivator type: Rear-tine
• Number of tines: 6
• Depth adjustment steps: 7

Equipment

• Horizontally adjustable handlebar: No
• Foldable handlebar: No
• Handlebar-mounted gear selection: Yes
• Reverse gearbox: Yes
• Drag bar: Yes
• Chevron tyres: Yes

Transmission

• Transmission type: Chain / Gear
• Transmission steps forward: 1
• Transmission steps reverse: 1
• Detachable transmission: No

Dimensions

• Weight: 107.5 kg
• Tyre size: 406 mm

Sound and Noise

• Sound pressure level at operators ear: 88 dB(A)
• Sound power level, measured: 98 dB(A)
• Sound power level, guaranteed (LWA): 100 dB(A)
