Compact Farm Tractors | MX5100D – 50 – 100HP

Name: Compact Farm Tractors | MX5100D – 50 – 100HP
Brand: Ongmac Trading

Supplier: Ongmac Trading

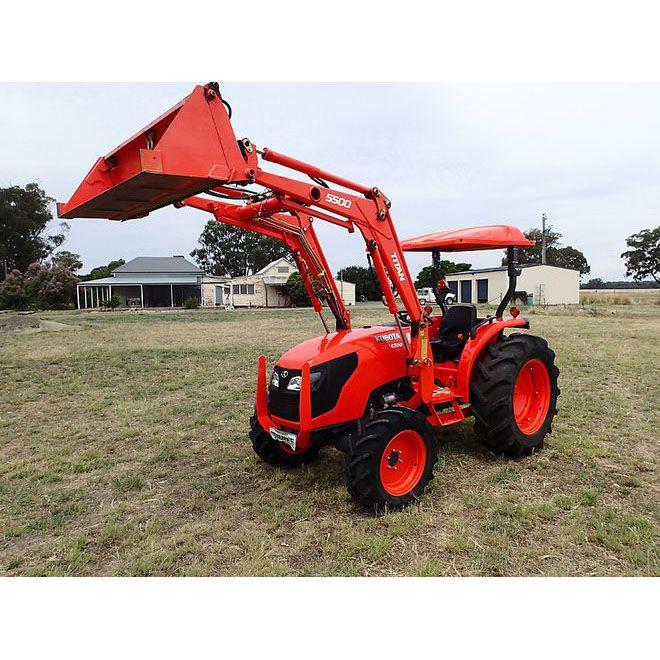

Kubota MX5100D – 50 – 100HP

In Stock

Manual Transmission

Designed to tackle a wide variety of tasks, the Kubota MX5100D features a powerful 50HP engine. Widely considered as the smoothest running 4-cylinder diesel engine in the industry, offering smooth transfer of power, low noise and quick start. Equipped with innovative features, the MX5100D is easy to attach and detach for increased operator productivity.

Features

PERFORMANCE

Powered by a reliable, heavy-duty Kubota 50HP engine.
Kubota’s Synchro Shuttle Transmission offers smooth operability and powerful agility. The hanging clutch and brake pedals deliver easy manoeuvrability when shifting. With 4 main shift speeds and 2 range-shift speeds (Hi/Lo), you have 8 forward and 8 reverse speeds to choose from giving you the versatility you need to maximise your productivity.
Kubota’s durable 3-point hitch is performance matched to operate seamlessly with the MX5100. Featuring telescopic lower link ends and stabilisers to allow easy attachment of a wide variety of Category I and II rear-mounted implements and enormous lift capacity.
4WD provides outstanding pulling power and traction in almost any working condition. Featuring a bevel gear front axle to deliver smooth and full-power transfer, plus greater all around manoeuvrability.

COMFORT

Full-flat deck enables safe and easy mounting/dismounting and the 760 spacious millimeters between fenders gives you all the room you need to work in comfort.
Make tight turns or take the straight path with the same smooth ease. These tractors feature responsive power steering to enhance manoeuvrability and make steering worry free when a heavy load is applied or the front loader is used.

FRONT END LOADER

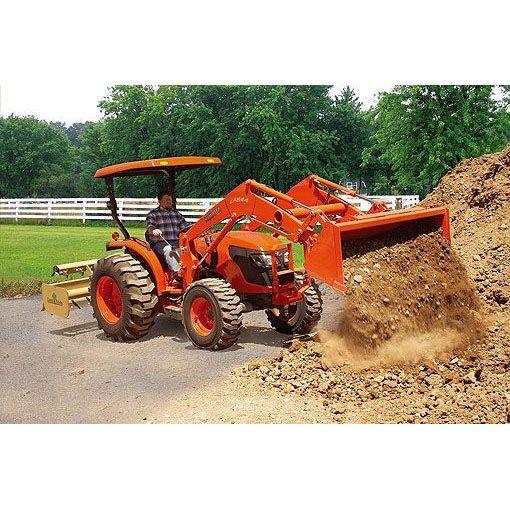

Kubota’s front loader is performance-matched to the MX5100, ensuring precise operation and improved productivity. The high lift capacity and lift height deliver impressive performance with each load, and the single lever joystick control makes operation easy.
The LA854AU-B loader features high-quality, heavy-duty cylinders to bring more muscle to your loader work
This standard feature allows the operator to raise or lower the loader boom while keeping the bucket level to the ground. This will help prevent spills when carrying soil or sand and will make pallet handling smooth and easy.
To broaden the scope and capabilities of your front loader applications, the LA854AU-B is available with a third function valve to operate attachments such as a 4 in 1 bucket.

MX5100 Specifications

		MX5100D	MX5100HD-AU
Engine		V2403-M-T	V2403-M-T
	Type (Make: KUBOTA)	E-TVCS, Indirect injection, liquid cooled diesel	E-TVCS, Indirect injection, liquid cooled diesel
	Engine gross power HP (kW)	52.2 (38.9)	52.2 (38.9)
	Engine net power HP (kW)	50.0 (37.3)	50.0 (37.3)
	PTO power HP (kW)	44.0 (32.8)	42.5 (31.7)
	No. of cylinders	4	4
	Aspiration	Turbocharged	Turbocharged
	Total displacement (cc)	2434	2434
	Fuel tank capacity (L)	48	48
	Air cleaner	Dry-dual element	Dry-dual element
	Alternator (Amp)	45	45
Transmission	No. of speeds	8F/8R	3-range speed
	Main gear shift (4 speeds)	Partially synchronised (3rd & 4th)	–
	Shuttle	Synchronised	Hydrostatic pedal operate
	Main clutch	Dry single plate	Dry single plate
	Brake	Mechanical wet disc	Mechanical wet disc
	Differential lock	Rear standard (mechanical)	Rear standard (mechanical)
PTO	PTO type	Live independent, hydraulic PTO with PTO brake, wet clutch	Live independent, hydraulic PTO with PTO brake, wet clutch
	Speed	540 rpm	540 rpm
Hydraulics	Pump capacity (main) (L)	35.8	35.8
	Power steering (L)	18.6	18.6
	3-point hitch	Category I & II	Category I & II
	Control system	Position (std), Draft (opt)	Position (std), Draft (opt)
	Lift capacity at 24 in. behind lift point (kg)	1050	1050
	No. of remote valves	Maximum 3 (opt)	Maximum 3 (opt)
Tyres	Standard Front	9.5 – 16	9.5 – 16
	Standard Rear	14.9 – 26	14.9 – 26
Travelling speeds (w/std. Ag. tyres) km/h	Forward		–
	First	1.6	–
	Second	2.2	–
	Third	3.6	–
	Fourth	5.4	–
	Fifth	7.6	–
	Sixth	10.8	–
	Seventh	17.5	–
	Eighth	25.9	–
	Reverse		–
	First	1.5	–
	Second	2.1	–
	Third	3.3	–
	Fourth	4.9	–
	Fifth	7.0	–
	Sixth	9.9	–
	Seventh	16.1	–
	Eighth	23.7	–
	Forward	–
	L	–	0 to 6.0
	M	–	0 to 11.8
	H	–	0 to 25.9
	Reverse	–
	L	–	0 to 5.5
	M	–	0 to 10.6
	H	–	0 to 23.3
Other features	4WD drive system	Bevel gear type	Bevel gear type
	Steering	Hydrostatic power type	Hydrostatic power type
	Bonnet type / Pedal type	Full open bonnet / Hanging pedals	Full open bonnet / Hanging pedals
	Deck type	Flat	Flat
Dimensions & weight	Overall length (w/o 3P) mm	3120	3120
	Overall height (top of ROPS) mm	2430	2430
	Overall width (minimum) mm	1770	1770
	Wheelbase (mm)	1895	1895
	Min. ground clearance (mm)	385	385
	Front tread width (mm)	1325	1325
	Rear tread width (mm)	1375 – 1490	1375 – 1490
	Turning radius (w/brake) (m)	2.7	2.7
	Tractor weight (kg)	1642	1712

MX5100D Loader Specifications

	LA854AU-B
Matching Tractor	MX5100
Maximum Lift Height (Pivot pin) (mm)	2863
Clearance w/Attachment Dump (mm)	2255
Reach @ Maximum Height (mm)	570
Maximum Dump Angle (deg.)	45
Reach w/Attachment on Ground (mm)	1919
Maximum Rollback Angle (deg.)	43
Digging Depth (When Bucket is Level) (mm)	177
Overall Height in Carry Position (mm)	1410
Material Bucket Width (mm)	1830
Material Bucket Weight (kg)	150
Lift Capacity (500mm forward) (kg)	800
Raising Time to Full Height w/out Load (sec.)	4.4
Lowering Time w/out Load (powerdown) (sec.)	2.8
Attachment Rollback Time (sec.)	1.9
Attachment Dumping Time (sec.)	1.5
Rated Flow (L/min)	37
