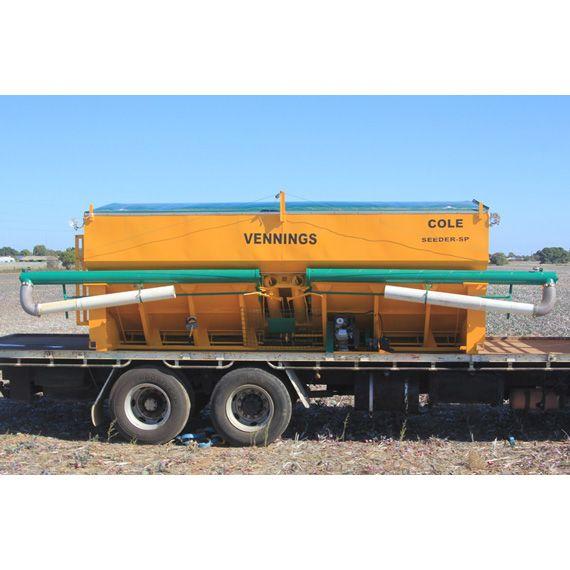

Cole Seed & Super Unit with Roll Top Tarp made by Vennings
- Fitted with heavy duty roll tarp
- Roll tarp open allows for easy filling from either side of the bin
- Roll tarp handle operated from the rear of the bin
- Roll tarp handle on 21 spline for fine adjustment to keep the tarp tight
- Two work light fitted to the bin
- Light switch near motor operates lights
- Discharge and sweep augers can be put in and out of gear from the combine or air seeder. Above picture showing auger out of gear.
- Above picture showing auger handle in gear.
- Discharge and sweep augers can also be put in and out of gear from the handles on the side of the bin.
- Clutch drive for sweep & discharge augers out of gear
- All moving parts are guarded for your protection & peace of mind.
- Clutch drive for sweep auger mesh guarded so you are able to see what is going on under the cover.
- Manual 1:1 winch for winching augers into position.
- Winch kit for winching augers into position and supporting the augers while in use
- 13 H/P Vanguard Electric Start Motor with Battery fitted standard on 14-18' Bins. 21 H/P Vanguard Electric Start Motor with Battery fitted standard on 21-24' Bins.
- Augers supports to support auger in transport position
- Heavy duty hinges with heavy duty springs to assist in folding augers
- PVC spouts available in 1200mm closed 2300mm opened or 600mm closed 1100mm opened
The Cole seed and super unit comes in a variety of sizes from 14' to 24' long. Ideal for air-seeders and combines alike, the longer top auger and bigger tube make the bin even easier to use. Discharging at a rate of over 500 kilograms of super per minute, filling an air-seeder or combine is a quick and hassle free experience.
Both 163mm (6 3/8”) Augers are hinged for ease of transport. Both augers are PVC lined to prevent super build-up. A winch is fitted for raising & lowering of augers. Each bin is fitted with a large swivelling trapdoor at the bottom for quick unloading and cleaning. Augers can be run simultaneously or individually. 14-18' Bins powered by a 13 H/P Vanguard Electric start motor with option of Honda. 21-24' Bins powered by a 21 H/P Vanguard Electric start motor with option of Honda. Painted interior and work lights standard on all units
| Bin |
14’ Bin |
16’ Bin |
16’ Bin |
18’ Bin |
18’ Bin |
21' Bin |
24' Bin |
| Bin Configuration |
7' + 7' |
8' + 8' |
9' + 7' |
9' + 9' |
10' + 8' |
10'6"+10'6" |
12' + 12' |
| Bin Length (overall) |
4.87 M |
5.37 M |
5.37 M |
5.97 M |
5.97 M |
6.77 M |
7.67 M |
| Chassis Length |
4.50 M |
5.00 M |
5.00 M |
5.60 M |
5.60 M |
6.40 M |
7.30 M |
| Bin Width |
2.40 M |
2.40 M |
2.40 M |
2.40 M |
2.40 M |
2.40 M |
2.40 M |
| Chassis Width |
2.12 M |
2.12 M |
2.12 M |
2.12 M |
2.12 M |
2.12 M |
2.12 M |
| Fill Height |
1.84/2.03 M |
1.84/2.03 M |
1.84/2.03 M |
1.84/2.03 M |
1.84/2.03 M |
1.84/2.03 M |
1.84/2.03 M |
| Overall Height |
2.03 M |
2.03 M |
2.03 M |
2.03 M |
2.03 M |
2.03 M |
2.03 M |
| Lid Opening |
1.92 M |
2.30 M |
2.60/2.00 M |
2.59 M |
2.89/2.30 M |
3.00 M |
3.45 M |
| Auger Discharge Height from truck Tray (measurement taken from steel outlet to truck tray height) |
2240mm |
2240mm |
2240mm |
2240mm |
2240mm |
2240mm |
2240mm |
| Auger Discharge Reach from truck Tray (measurement taken from steel outlet to truck tray) |
2.40 M |
2.40 M |
2.40 M |
2.40 M |
2.40 M |
2.40 M |
2.40 M |
| Seed Capacity |
6.8m³ |
8.2m³ |
6.8m³/8.9m³ |
8.9m³ |
8.9m³/9.7m³ |
10.2m³ |
12.3 m³ |
| Fertiliser Capacity |
6.8m³ |
8.2 m³ |
6.8m³/8.9m³ |
8.9m³ |
8.9m³/9.7m³ |
10.2m³ |
12.3 m³ |
| Weight (approximate) |
|
|
|
|
|
|
|
|
Approximate Grain and Fertilizer Capacities per Cubic Metre (M³)
| |
Approximate Ton Per Cubic Metre (M³) |
| Wheat |
0.82 |
| Barley |
0.67 |
| Oats |
0.58 |
| MAP/DAP |
0.85 |
| Urea |
0.67 |
| Single Super |
1.20 |
To work out capacity of the 16' (8' + 8') Bin holds 8.2 (M³)
Wheat 0.82 / M³ X 8.2 M³ = 6.72 Ton
MAP/DAP 0.85 / M³ X 8.2 M³ = 6.97 Ton
To contact Vennings about Cole Seed & Super Units with Steel Lids use Get a quote.
