Articulated Wheel Loader | SW405K5Get latest price

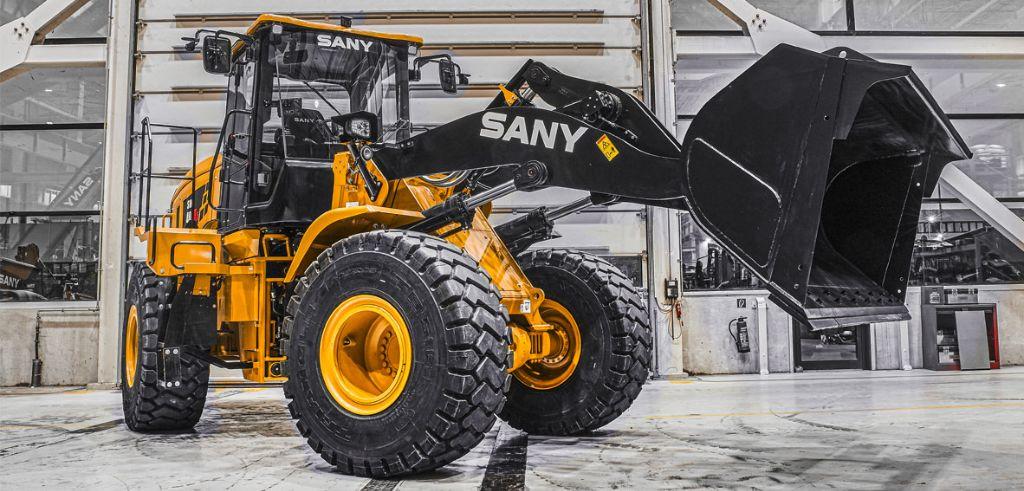

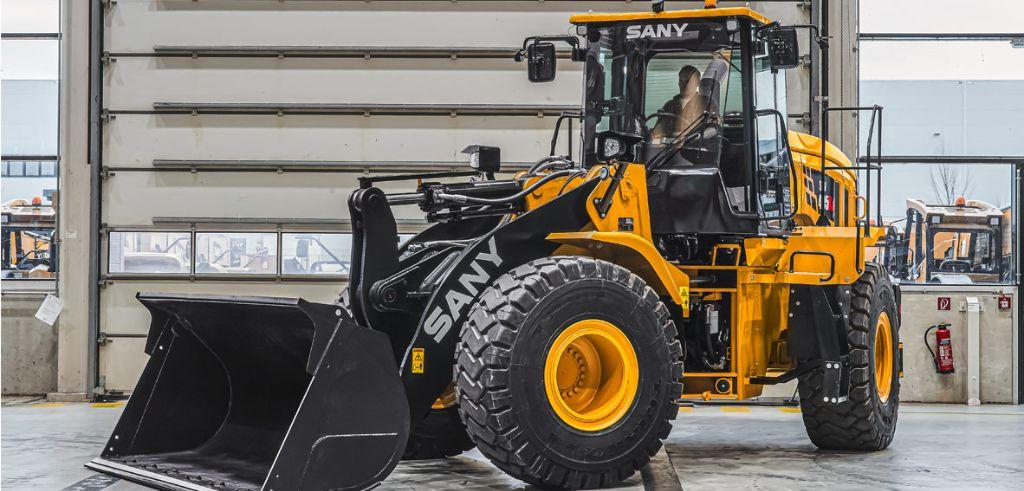

The new SANY SW 405 wheel loader takes productivity to the next level. With its powerful Deutz common rail diesel engine and the robust heavy-duty frame design, it‘s the ideal choice wherever power and reliabilityare required. Its signature features are its strong breakaway forces and large tipping loads. What‘s more, with its many options for attachments, this powerhouse is a multifunctional machine that can handle a wide range of wheel loader tasks with flying colours.

Simply More:

The new SW405 already comes with a number of features ex-works for improved comfort, greater safety and increased productivity. This includes vibration damping, bucket resetting, adjustable lifting and emptying speeds and the float position.

Key Features



• Particularly powerful wheel loader
• Spacious, ROPS/FOPS-certified cab
• Hydraulically driven reversible fan

General Information

• Engine

Deutz TCD7.8

• Emission Stage

V

• Engine Power

170 kW

• Engine Revolutions

1800 rpm

• Max. ground speed (small gear)

7 km/hr

• Max. ground speed (big gear)

41 km/hr

• Angle of oscillation

24 degree

• Total Steering angle

40 degree

• Outer tyres turning radius

5635 mm

• Max. oilflow

307 l/min

• Transport length

8180 mm

• Transport width

2760 mm

• Height

3580 mm

• Wheelbase

3200 mm

• Weight

18500 kg
